library(dplyr)
library(COTAN)
library(Seurat)
library(tibble)
library(ggplot2)
library(zeallot)
library(DropletUtils)Filtering of PBMC2 using COTAN
Library import
Settings
datasetName = 'PBMC2'
datasetFolder = './Data/'
inDir = paste(datasetFolder, datasetName, '/raw/10X/', sep='')
outDir = paste(datasetFolder, datasetName, '/filtered/', sep='')
dir10X = paste(outDir, '10X/', sep='')
if (!dir.exists(outDir)) {
dir.create(outDir, recursive = TRUE, showWarnings = FALSE)
}
setLoggingLevel(2)
setLoggingFile(paste(outDir, "logfile.log", sep=""))
options(parallelly.fork.enable = TRUE)Data loading
dataset = Read10X(data.dir = inDir, strip.suffix = TRUE)
dataset = dataset[[1]]
sampleCond <- datasetName
PBMC2 <- COTAN(raw = dataset)
PBMC2 <- initializeMetaDataset(
PBMC2,
GEO = paste("10X ", datasetName, sep=""),
sequencingMethod = "10X",
sampleCond = sampleCond
)Inspect cells’ sizes
cellSizePlot(PBMC2)
Drop cells with too many reads as they are probably doublets
cellsSizeThr <- 20000
PBMC2 <- addElementToMetaDataset(PBMC2, "Cells size threshold", cellsSizeThr)
cellsToRem <- getCells(PBMC2)[getCellsSize(PBMC2) > cellsSizeThr]
PBMC2 <- dropGenesCells(PBMC2, cells = cellsToRem)
cellSizePlot(PBMC2, splitPattern = "-", numCol = 2)
Inspect the number of expressed genes per cell

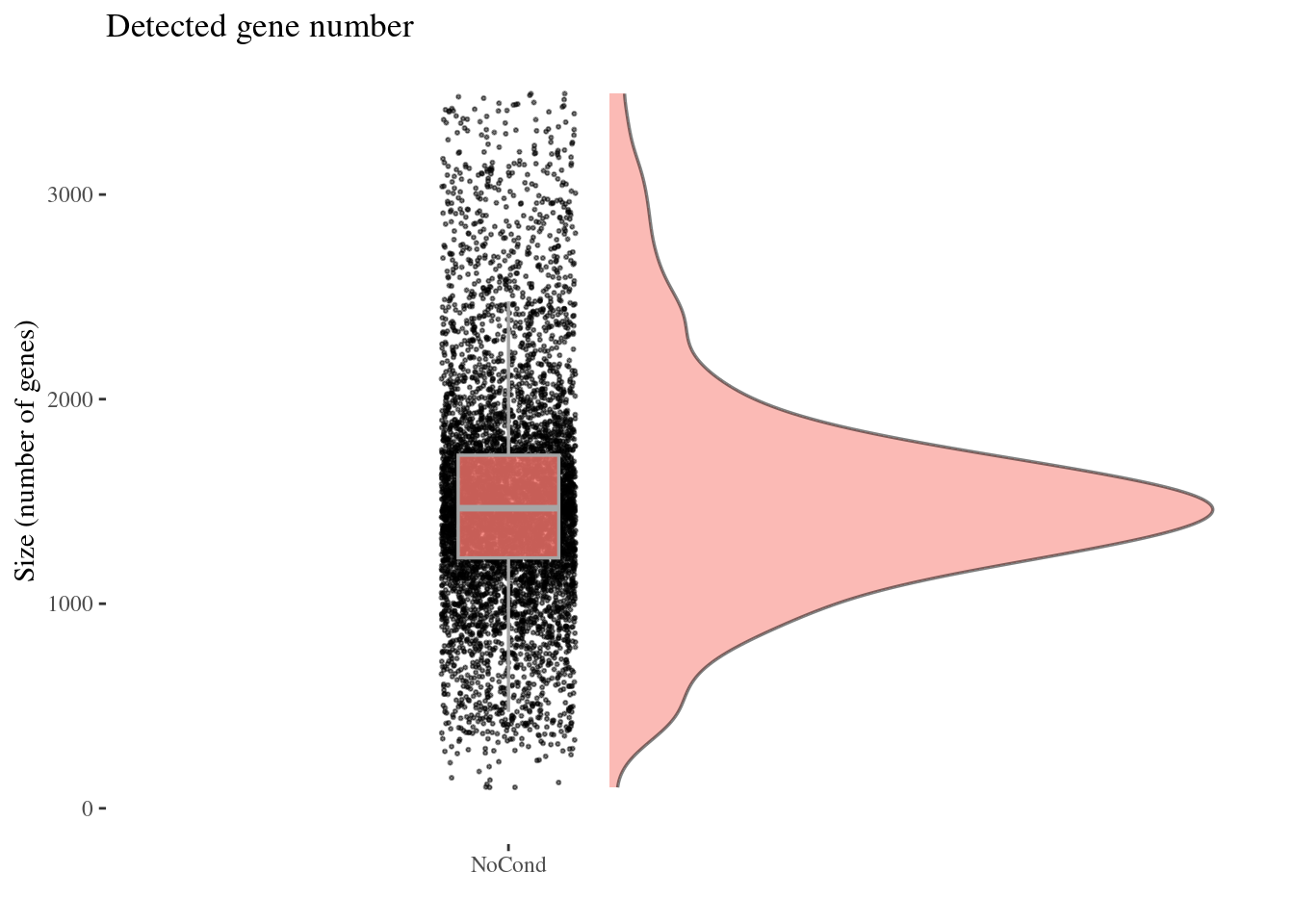

genesSizePlot(PBMC2, splitPattern = "-", numCol = 2)
Drop cells with too high genes expression as they are probably doublets
geneSizeThr <- 3500
PBMC2 <- addElementToMetaDataset(PBMC2, "Num genes threshold", geneSizeThr)
numExprGenes <- getNumExpressedGenes(PBMC2)
cellsToRem <- names(numExprGenes)[numExprGenes > geneSizeThr]
PBMC2 <- dropGenesCells(PBMC2, cells = cellsToRem)
genesSizePlot(PBMC2, splitPattern = "-", numCol = 2)
Check number of mithocondrial genes expressed in each cell
mitGenesPattern <- "^[Mm][Tt]-"
getGenes(PBMC2)[grep(mitGenesPattern, getGenes(PBMC2))] [1] "MT-ND1" "MT-ND2" "MT-CO1" "MT-CO2" "MT-ATP8" "MT-ATP6" "MT-CO3"
[8] "MT-ND3" "MT-ND4L" "MT-ND4" "MT-ND5" "MT-ND6" "MT-CYB" c(mitPlot, mitSizes) %<-%
mitochondrialPercentagePlot(PBMC2, genePrefix = mitGenesPattern,
splitPattern = "-", numCol = 2)
plot(mitPlot)
We drop cells with a too high percentage of mitocondrial genes (are likely dead)
mitPercThr <- 10
PBMC2 <- addElementToMetaDataset(PBMC2, "Mitoc. perc. threshold", mitPercThr)
cellsToRem <- rownames(mitSizes)[mitSizes[["mit.percentage"]] > mitPercThr]
PBMC2 <- dropGenesCells(PBMC2, cells = cellsToRem)
c(mitPlot, mitSizes) %<-%
mitochondrialPercentagePlot(PBMC2, genePrefix = mitGenesPattern,
splitPattern = "-", numCol = 2)
plot(mitPlot)
Check number of ribosomial genes expressed in each cell
ribGenesPattern <- "^RP[SL]\\d+"
getGenes(PBMC2)[grep(ribGenesPattern, getGenes(PBMC2))] [1] "RPL22" "RPL11" "RPS6KA1" "RPS8" "RPL5"
[6] "RPS27" "RPS6KC1" "RPS7" "RPS27A" "RPL31"
[11] "RPL37A" "RPL32" "RPL15" "RPL14" "RPL29"
[16] "RPL24" "RPL22L1" "RPL39L" "RPL35A" "RPL9"
[21] "RPL34-AS1" "RPL34" "RPS3A" "RPL37" "RPS23"
[26] "RPS14" "RPL26L1" "RPS18" "RPS10-NUDT3" "RPS10"
[31] "RPL10A" "RPL7L1" "RPS12" "RPS6KA2" "RPS6KA2-IT1"
[36] "RPS6KA2-AS1" "RPS20" "RPL7" "RPL30" "RPL8"
[41] "RPS6" "RPL35" "RPL12" "RPL7A" "RPS24"
[46] "RPL27A" "RPS13" "RPS6KA4" "RPS6KB2" "RPS6KB2-AS1"
[51] "RPS3" "RPS25" "RPS26" "RPL41" "RPL6"
[56] "RPL21" "RPL10L" "RPS29" "RPL36AL" "RPS6KL1"
[61] "RPS6KA5" "RPS27L" "RPL4" "RPS17" "RPL3L"
[66] "RPS2" "RPS15A" "RPL13" "RPL26" "RPL23A"
[71] "RPL23" "RPL19" "RPL27" "RPS6KB1" "RPL38"
[76] "RPL17" "RPS15" "RPL36" "RPS28" "RPL18A"
[81] "RPS16" "RPS19" "RPL18" "RPL13A" "RPS11"
[86] "RPS9" "RPL28" "RPS5" "RPS21" "RPL3"
[91] "RPS19BP1" "RPS6KA3" "RPS4X" "RPS6KA6" "RPL36A"
[96] "RPL39" "RPL10" "RPS4Y1" "RPS4Y2" c(ribPlot, ribSizes) %<-%
mitochondrialPercentagePlot(PBMC2, genePrefix = ribGenesPattern,
splitPattern = "-", numCol = 2)
plot(ribPlot)
Check no further outliers after all the culling
cellSizePlot(PBMC2, splitPattern = "-", numCol = 2)
genesSizePlot(PBMC2, splitPattern = "-", numCol = 2)
Cleaning, round 1
PBMC2 <- clean(PBMC2)
c(pcaCellsPlot, pcaCellsData, genesPlot, UDEPlot, nuPlot, zoomedNuPlot) %<-% cleanPlots(PBMC2)

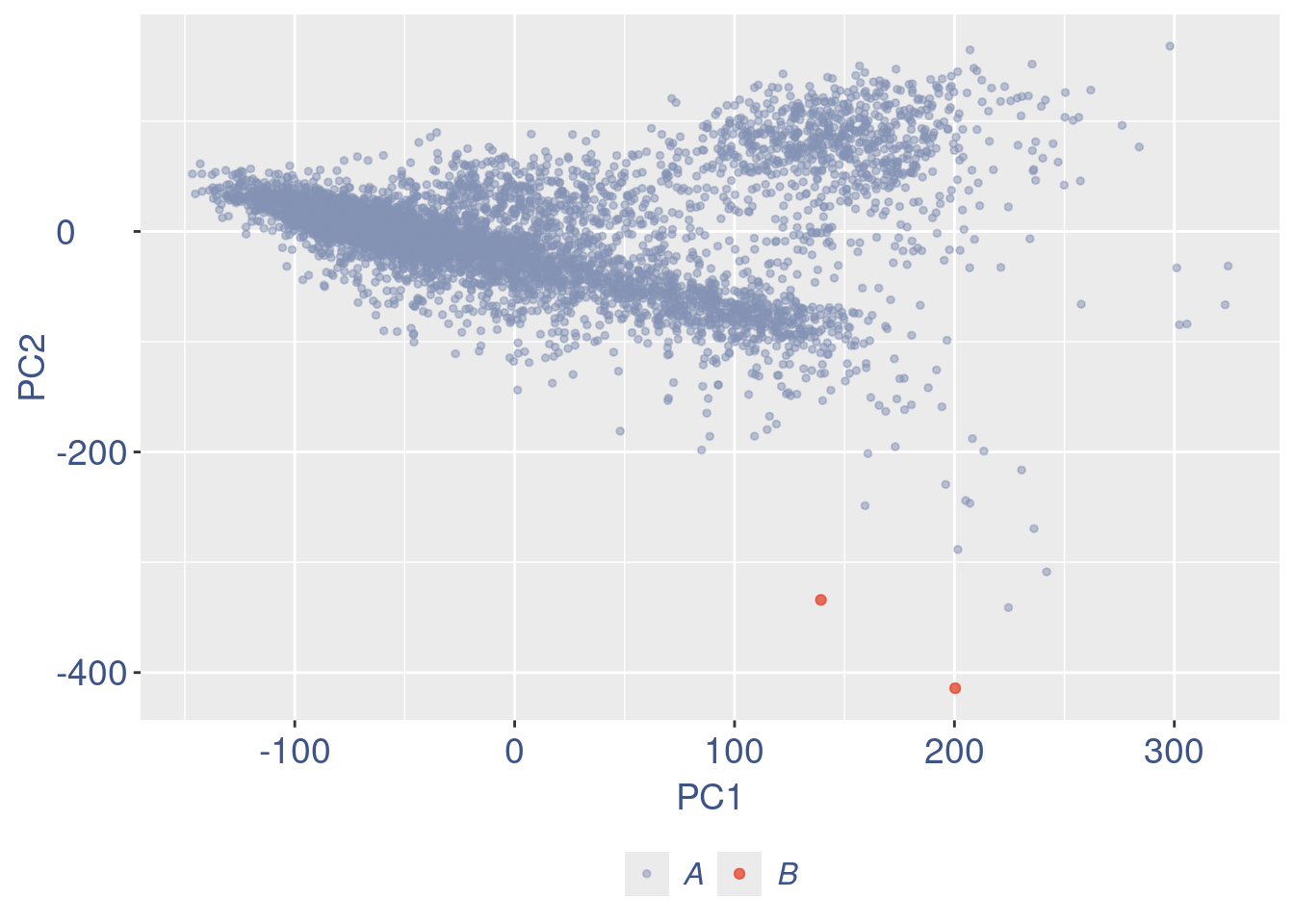

plot(pcaCellsPlot)
plot(genesPlot)
PBMC2 <- addElementToMetaDataset(PBMC2, "Num drop B group", 0)plot(UDEPlot)
plot(nuPlot)

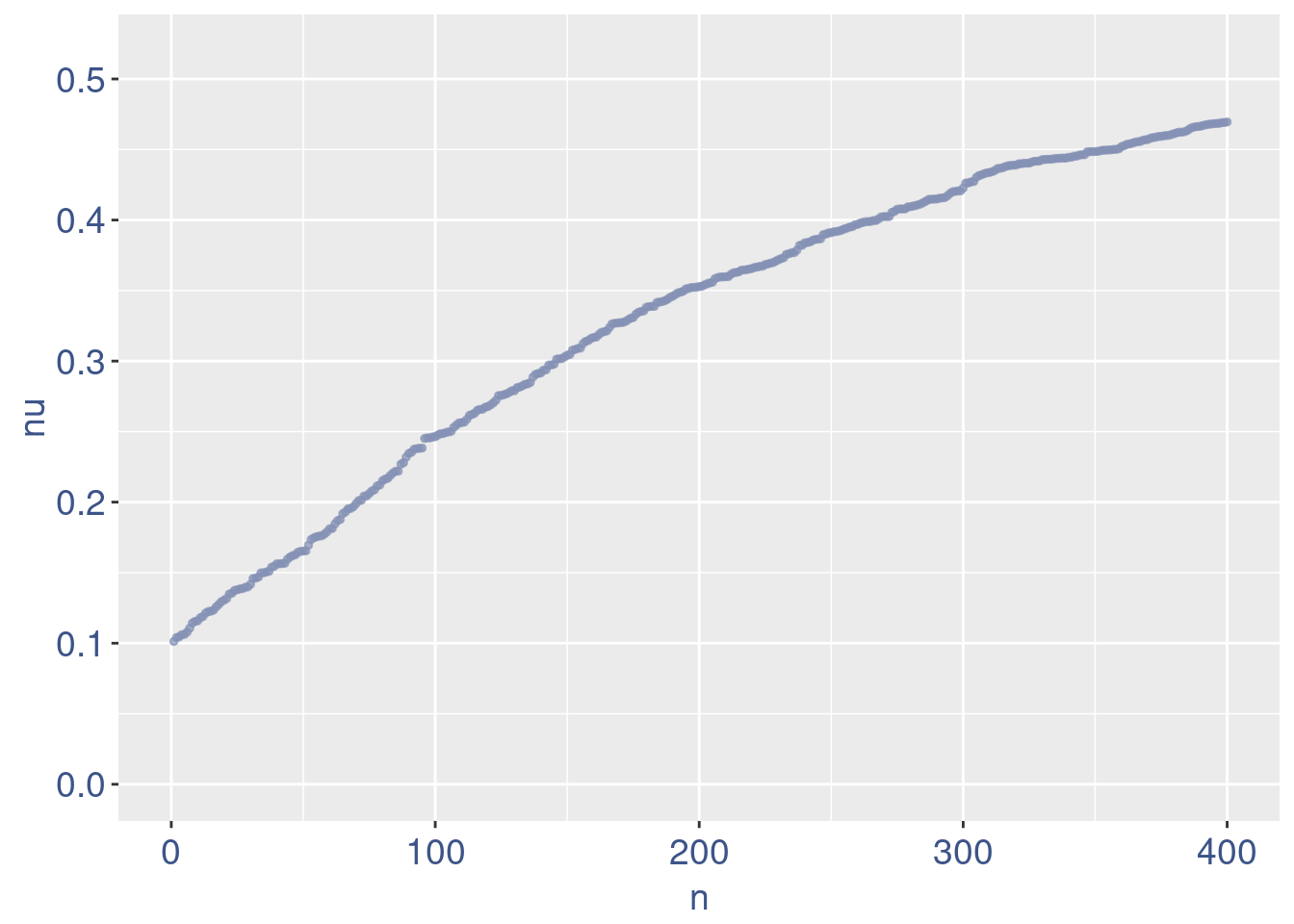

plot(zoomedNuPlot)
yset=0.16
nuDf <- data.frame("nu" = sort(getNu(PBMC2)), "n" = seq_along(getNu(PBMC2)))
PBMC2 <- addElementToMetaDataset(PBMC2, "Threshold low UDE cells:", yset)
cellsToRem <-rownames(nuDf)[nuDf[["nu"]] < yset]
PBMC2 <- dropGenesCells(PBMC2, cells = cellsToRem)Cleaning, round 2
PBMC2 <- clean(PBMC2)
c(pcaCellsPlot, pcaCellsData, genesPlot, UDEPlot, nuPlot, zoomedNuPlot) %<-% cleanPlots(PBMC2)
plot(pcaCellsPlot)
plot(pcaCellsData)
plot(genesPlot)
plot(UDEPlot)
plot(nuPlot)
plot(zoomedNuPlot)
plot(cellSizePlot(PBMC2, splitPattern = "-", numCol = 2))
plot(genesSizePlot(PBMC2, splitPattern = "-", numCol = 2))
Save the filtered dataset
if (!dir.exists(dir10X)) {
write10xCounts(dir10X, getRawData(PBMC2))
}saveRDS(PBMC2, file = paste0(outDir, sampleCond, ".cotan.RDS"))sessionInfo()R version 4.3.2 (2023-10-31)
