# Util libs
library(assertthat)
library(ggplot2)
library(zeallot)
library(conflicted)
library(Matrix)
library(stringr)
library(tidyverse)
library(ComplexHeatmap)
# Data processing libs
if (!suppressWarnings(require(COTAN))) {
devtools::load_all("~/dev/COTAN/COTAN/")
}
conflicts_prefer(zeallot::`%->%`, zeallot::`%<-%`)
options(parallelly.fork.enable = TRUE)
setLoggingLevel(2L)Relevant Clusters Distance Evaluation using Run 40
Preamble
inDir <- file.path("Data/Brown_PBMC_Datasets/")
outDir <- file.path("Results/GDI_Sensitivity/PBMCBrownRun40/")
list.files(path = inDir, pattern = "\\.RDS$") [1] "capillary_blood_samples_pbmcs-Run_28.RDS"
[2] "capillary_blood_samples_pbmcs-Run_40-Cleaned.RDS"
[3] "capillary_blood_samples_pbmcs-Run_40.RDS"
[4] "capillary_blood_samples_pbmcs-Run_41-Cleaned.RDS"
[5] "capillary_blood_samples_pbmcs-Run_41.RDS"
[6] "capillary_blood_samples_pbmcs-Run_62.RDS"
[7] "capillary_blood_samples_pbmcs-Run_77-Cleaned.RDS"
[8] "capillary_blood_samples_pbmcs-Run_77.RDS"
[9] "capillary_blood_samples_pbmcs.RDS"
[10] "CD4Tcells-Run_40-Cleaned.RDS"
[11] "Run_40Cl_0CD4TcellsRawData.RDS"
[12] "Run_40Cl_1CD4TcellsRawData.RDS"
[13] "Run_40Cl_5CD4TcellsRawData.RDS"
[14] "Run_40Cl_7CD4TcellsRawData.RDS"
[15] "Run_40Cl_8CD4TcellsRawData.RDS"
[16] "Run_40Cl_9CD4TcellsRawData.RDS" globalCondition <- "capillary_blood_samples_pbmcs"
thisRun <- "40"
fileNameIn <- paste0(globalCondition, "-Run_", thisRun, "-Cleaned.RDS")
setLoggingFile(file.path(inDir, paste0("ClustersDistance_Run", thisRun, ".log")))Load COTAN object
aRunObj <- readRDS(file = file.path(inDir, fileNameIn))
sampleCondition <- getMetadataElement(aRunObj, datasetTags()[["cond"]])[[1L]]
getClusterizations(aRunObj) [1] "cell_type_level_1" "cell_type_level_2" "cell_type_level_3"
[4] "cell_type_level_4" "c1" "c2"
[7] "c3" "c4" "Sample_C3"
[10] "SelUnifCl" relevantClusters <- getClusters(aRunObj, clName = "SelUnifCl")relevantClustersList <- toClustersList(relevantClusters)
relevantClustersList <- relevantClustersList[names(relevantClustersList) != "Other"]Defining the two distances
To roughly determine the cluster distances we decided to test two simple Euclidean distances:
over the mean of the 0/1 raw matrix
over the \(1-e^{-\lambda}\) where \(\lambda\) is the average expression for the genes.
allZeroOne <- data.frame(row.names = getGenes(aRunObj))
allProbOne <- data.frame(row.names = getGenes(aRunObj))
for (clName in names(relevantClustersList)) {
print(paste("Calculating statistics for custer:", clName))
cellsToDrop <- getCells(aRunObj)[relevantClusters != clName]
obj <- dropGenesCells(aRunObj, cells = cellsToDrop)
# for each gene get average presence in a cell
ZeroOne <- rowMeans(getZeroOneProj(obj))
allZeroOne <- cbind(allZeroOne, ZeroOne)
colnames(allZeroOne)[ncol(allZeroOne)] <- clName
# for each gene get the average probability of presence in a cell
obj <- estimateLambdaLinear(obj)
ProbOne <- 1 - exp(-getLambda(obj))
allProbOne <- cbind(allProbOne, ProbOne)
colnames(allProbOne)[ncol(allProbOne)] <- clName
}
head(allZeroOne)
head(allProbOne)Saving the df
saveRDS(allZeroOne, file.path(outDir, "allZeroOne.RDS"))
saveRDS(allProbOne, file.path(outDir, "allProbOne.RDS"))allZeroOne <- readRDS(file.path(outDir, "allZeroOne.RDS"))

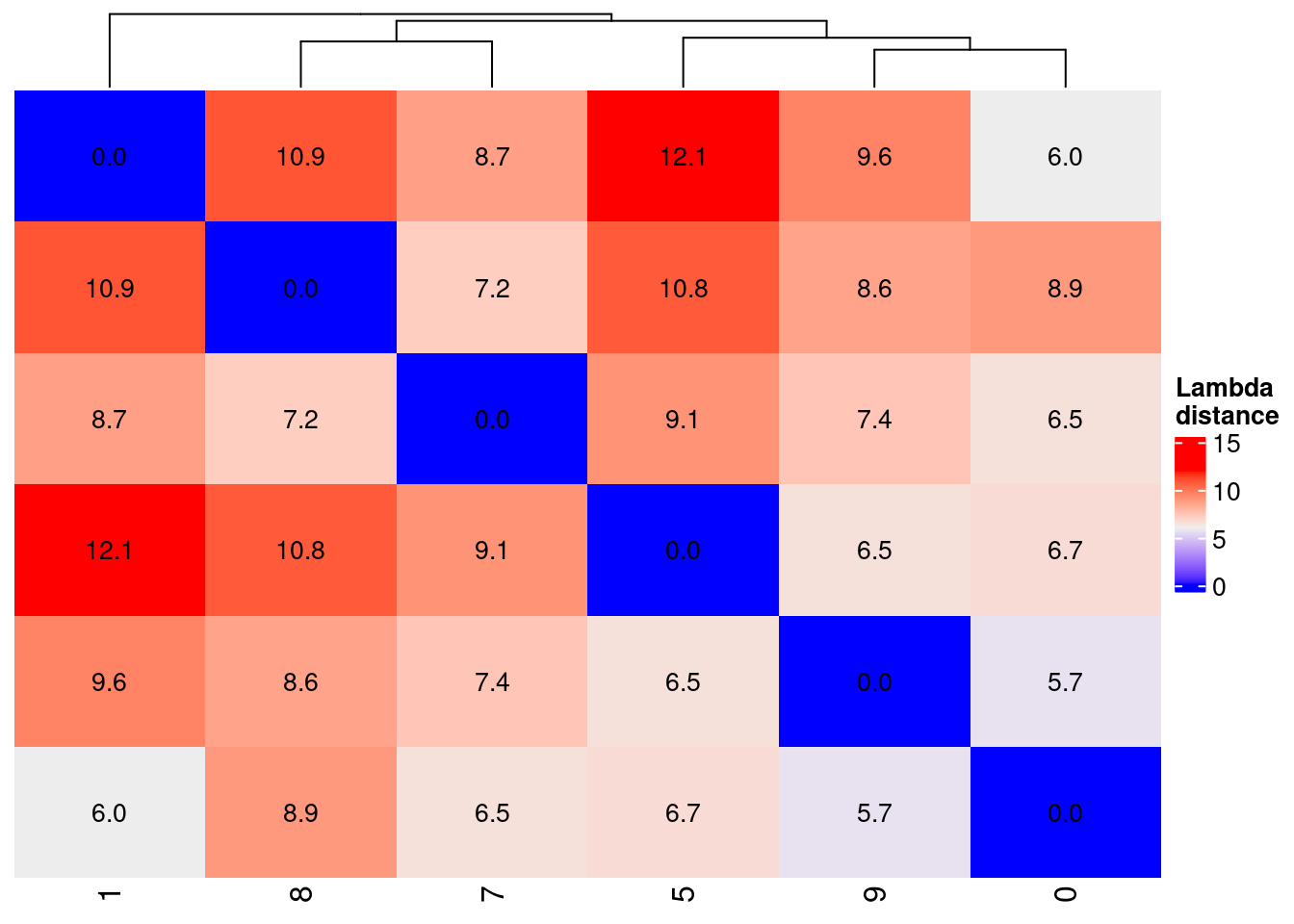

allProbOne <- readRDS(file.path(outDir, "allProbOne.RDS"))ProbOne distance
distanceProbOne <-
as.matrix(dist(t(allProbOne), method = "euclidean",
diag = TRUE, upper = TRUE))
saveRDS(distanceProbOne, file.path(outDir, "distanceProbOne.RDS"))
Heatmap(
distanceProbOne,
name = "Lambda\ndistance",
cell_fun = function(j, i, x, y, width, height, fill)
{
grid.text(sprintf("%.1f", distanceProbOne[i, j]), x, y, gp = gpar(fontsize = 10))
},
show_row_dend = FALSE,
show_row_names = FALSE
)

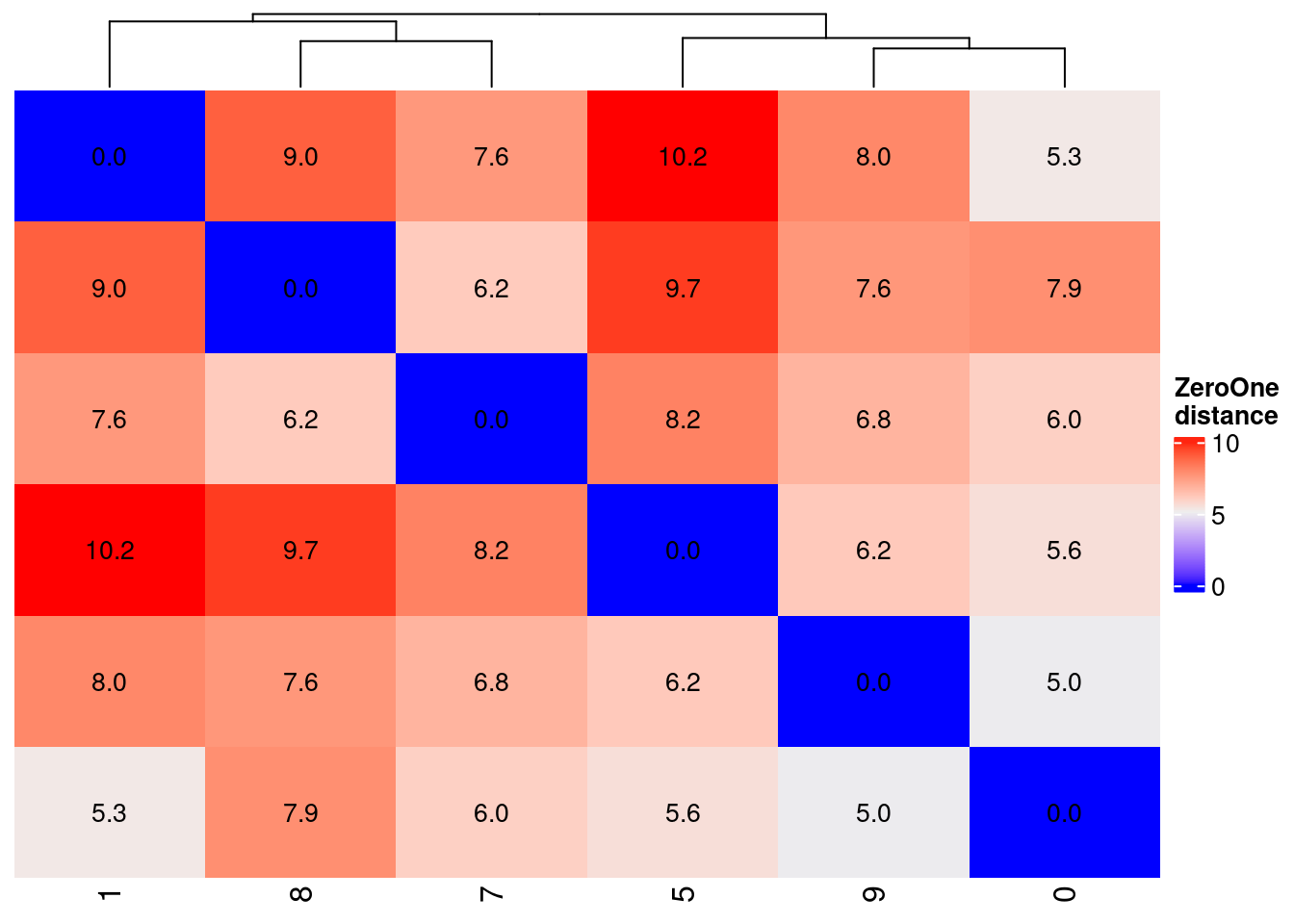

ZeroOne distance
distanceZeroOne <-
as.matrix(dist(t(allZeroOne), method = "euclidean",
diag = TRUE, upper = TRUE))
saveRDS(distanceZeroOne, file.path(outDir, "distanceZeroOne.RDS"))
HeatmapZeroOne <-
Heatmap(
distanceZeroOne,
name = "ZeroOne\ndistance",
cell_fun = function(j, i, x, y, width, height, fill)
{
grid.text(sprintf("%.1f", distanceZeroOne[i, j]),
x, y, gp = gpar(fontsize = 10))
},
show_row_dend = FALSE,
show_row_names = FALSE
)
pdf(file = file.path(outDir,"HeatmapZeroOne.pdf"), width = 6, height = 5)
plot(HeatmapZeroOne)
dev.off()png
2 plot(HeatmapZeroOne)
Sys.time()[1] "2026-02-02 15:43:46 CET"#Sys.info()
