# Util libs
library(assertthat)
library(ggplot2)
library(zeallot)
library(conflicted)
library(Matrix)
# Data processing libs
if (!suppressWarnings(require(COTAN))) {
devtools::load_all("~/dev/COTAN/COTAN/")
}
conflicts_prefer(zeallot::`%->%`, zeallot::`%<-%`)
options(parallelly.fork.enable = TRUE)
setLoggingLevel(2L)Dataset Cleaning
Preamble
List input files
#setwd("d:/COTAN_Datasets_analysis/Data/NewDataRevision/")
inDir <- file.path("MouseBrainOpenProblem")
outDir <- file.path("MouseBrainOpenProblem")
list.files(path = inDir, pattern = "\\.RDS$")[1] "MouseBrainOP_COTAN_raw.RDS" "MouseBrainOPCOTAN-Cleaned.RDS"globalCondition <- "MouseBrainOP"
fileNameIn <- paste0(globalCondition, "_COTAN_raw.RDS")
setLoggingFile(file.path(outDir, paste0("DatasetCleaning.log")))Load dataset
CotanObj <- readRDS(file = file.path(inDir, fileNameIn))
getAllConditions(CotanObj) [1] "metadata_cells" "age_days" "brain_hemisphere"
[4] "brain_region" "brain_subregion" "class"
[7] "cluster" "driver_lines" "eye_condition"
[10] "facs_container" "facs_date" "facs_sort_criteria"
[13] "genotype" "gfp_cpm" "reporter_lines"
[16] "rna_amplification_set" "sample_id" "sample_type"
[19] "seq_batch" "seq_name" "seq_tube"
[22] "sex" getClusterizations(CotanObj)[1] "cell_type" "metadata_cells" "age_days" "brain_hemisphere"
[5] "brain_region" "brain_subregion" "class" "cluster" dim(getRawData(CotanObj))[1] 34617 14249table(getCondition(CotanObj, condName = "class"))
Endothelial GABAergic Glutamatergic Non-Neuronal
181 6125 7366 577 KEeping only nuronal cells
cellsToDrop <- names(getCondition(CotanObj, condName = "class")[getCondition(CotanObj, condName = "class") %in% c("Endothelial","Non-Neuronal")])
CotanObj <- dropGenesCells(CotanObj, cells = cellsToDrop)Cleaning
clean() using standard thresholds
CotanObj <- clean(CotanObj)Check the initial plots

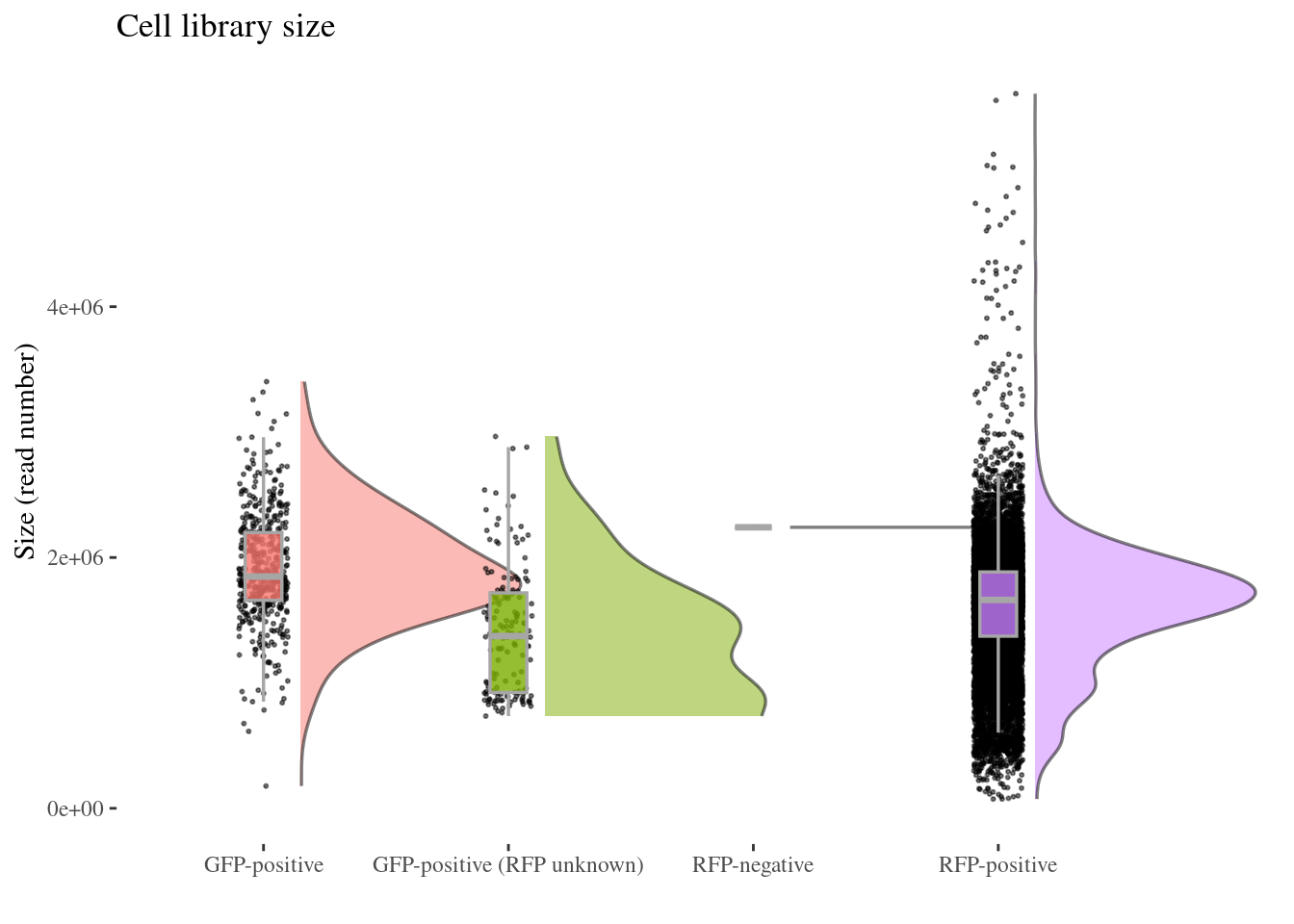

cellSizePlot(CotanObj, condName = "facs_sort_criteria")

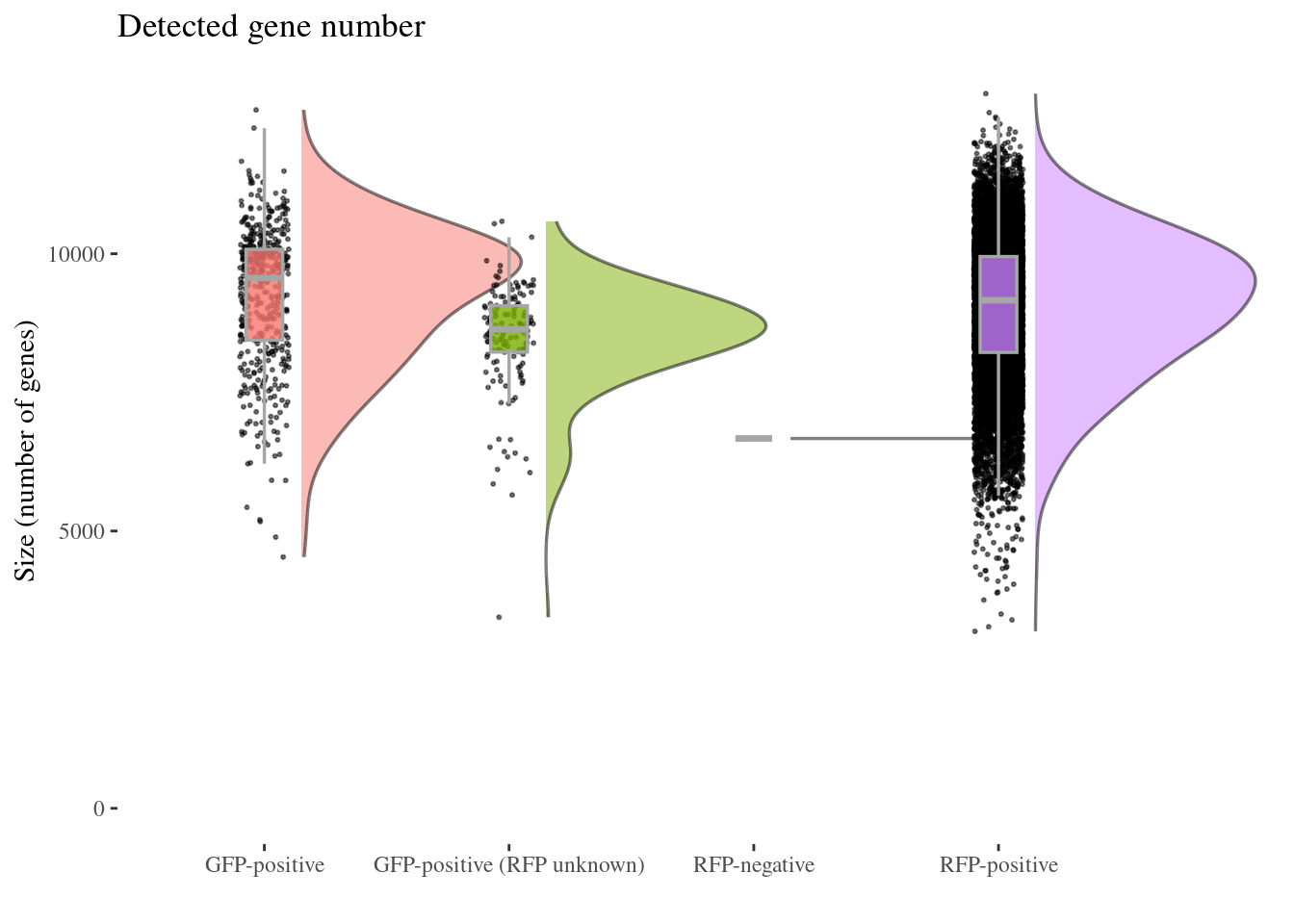

genesSizePlot(CotanObj, condName = "facs_sort_criteria")

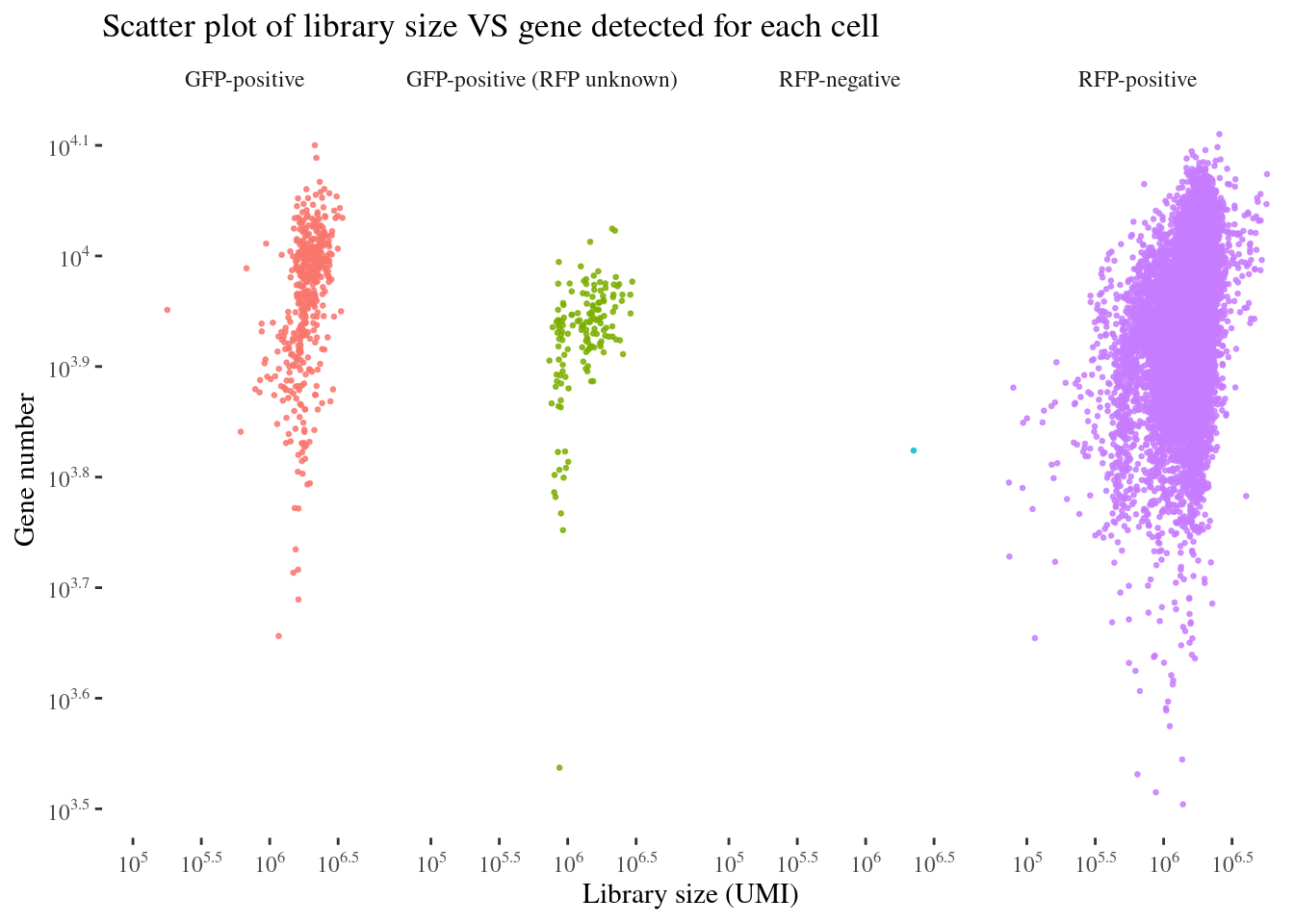

scatterPlot(CotanObj, condName = "facs_sort_criteria")
Since the canonical prefix for mitocondiral genes is not found, we will use the genes defined by MitoCarta3.0
mitGenes <- readxl::read_excel("MouseBrainOpenProblem/Mouse.MitoCarta3.0.xls",sheet =2)
mitGenes <- unique(mitGenes[mitGenes$MSMS_NUM_TISSUES == 14,]$Symbol)
c(mitPerPlot, mitPerDf) %<-%
genesPercentagePlot(CotanObj, condName = "facs_sort_criteria",title = "Mit %",
genes = mitGenes)

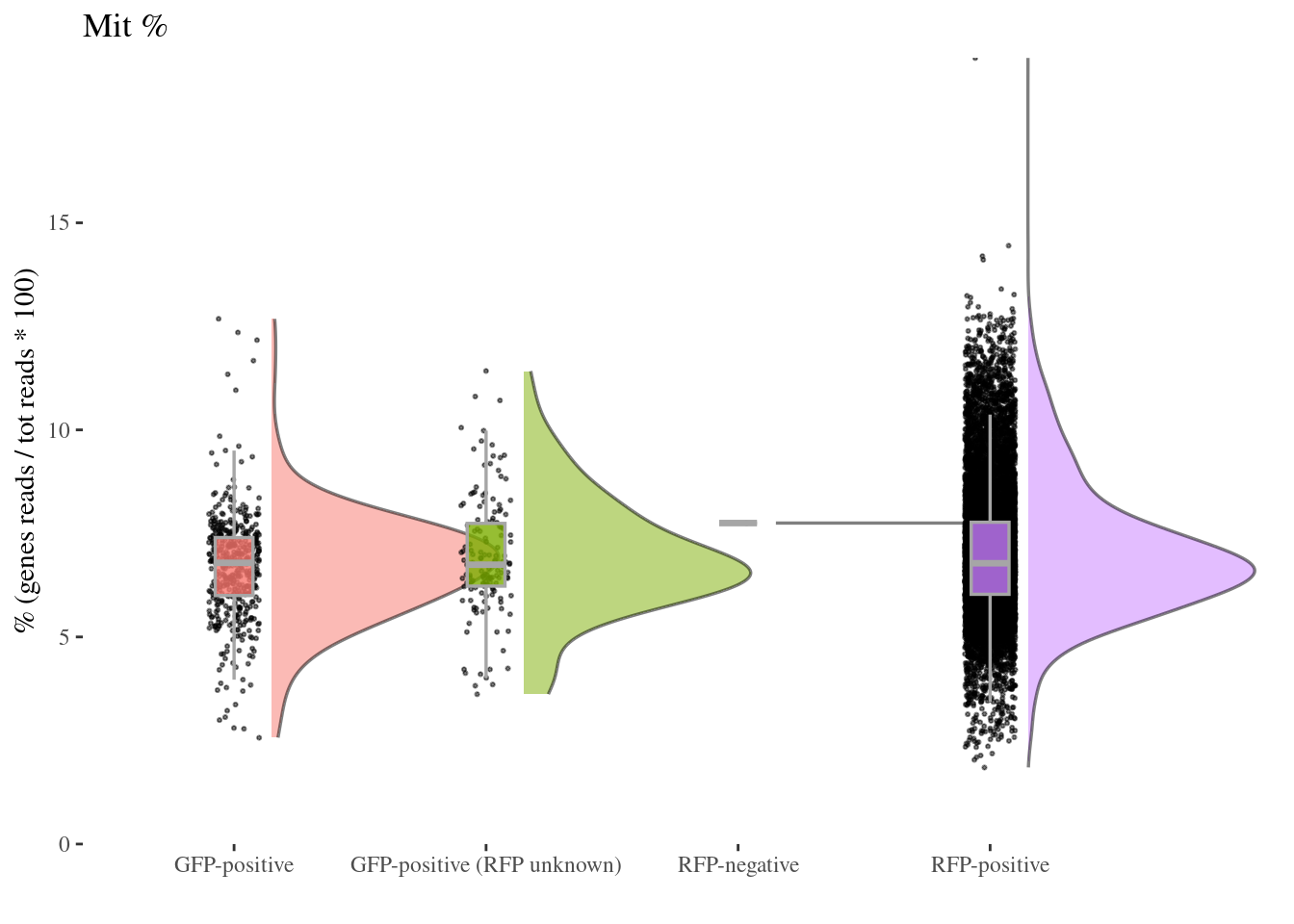

mitPerPlot
Remove too high mitochondrial percentage cells
Expected percentages are around 6%-10%: too high percentage imply dead cells
sum(mitPerDf[["percentage"]] > 15)[1] 1sum(mitPerDf[["percentage"]] > 14.0)[1] 4sum(mitPerDf[["percentage"]] > 13.0)[1] 9sum(mitPerDf[["percentage"]] > 12.0)[1] 78sum(mitPerDf[["percentage"]] > 11.0)[1] 310sum(mitPerDf[["percentage"]] > 10.0)[1] 793# drop above 14%
mitPerThr <- 12.0
CotanObj <-
addElementToMetaDataset(
CotanObj,
"Mitochondrial percentage threshold", mitPerThr)
cellsToDrop <- getCells(CotanObj)[which(mitPerDf[["percentage"]] > mitPerThr)]
CotanObj <- dropGenesCells(CotanObj, cells = cellsToDrop)Redo the plots

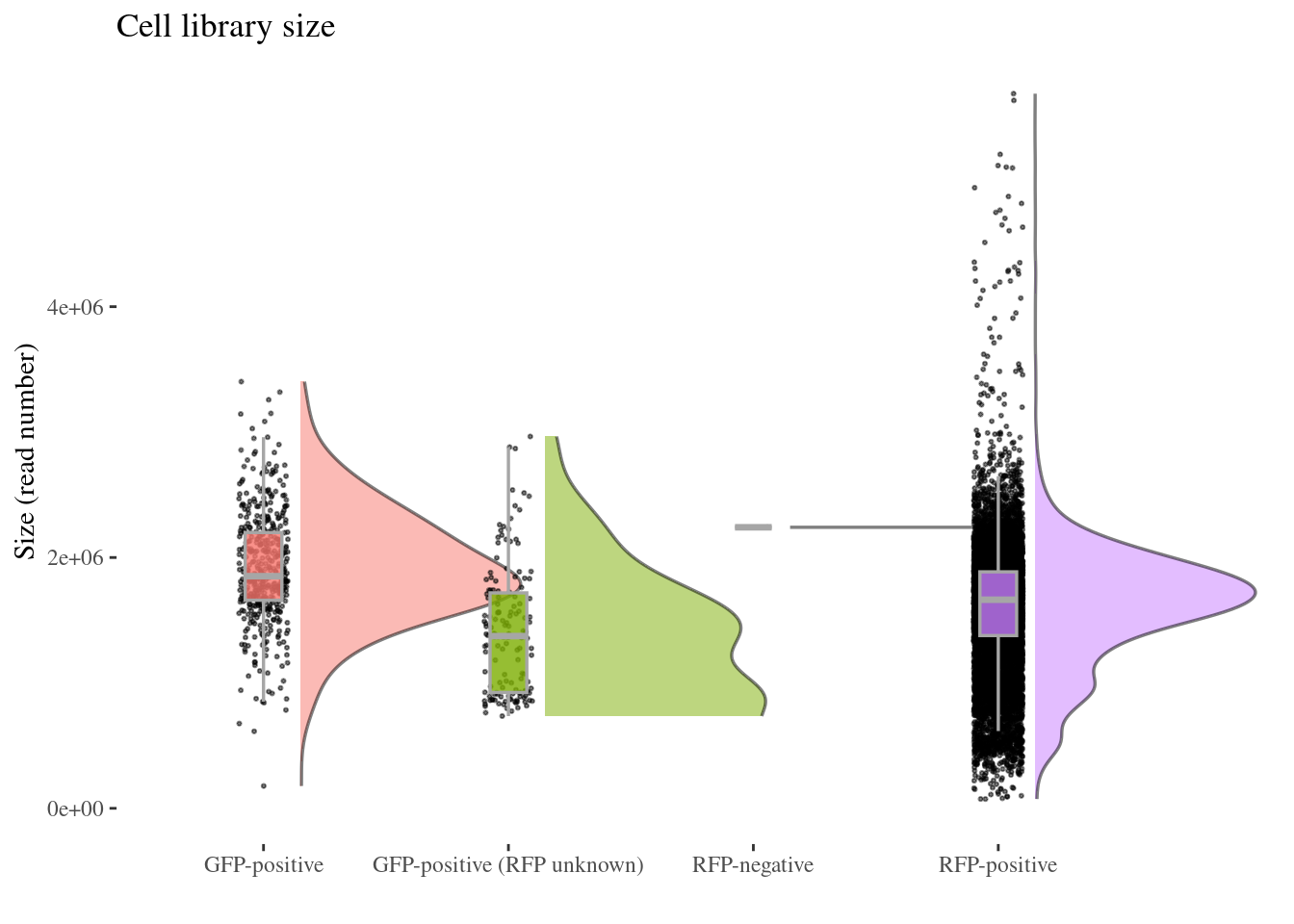

cellSizePlot(CotanObj, condName = "facs_sort_criteria")
genesSizePlot(CotanObj, condName = "facs_sort_criteria")

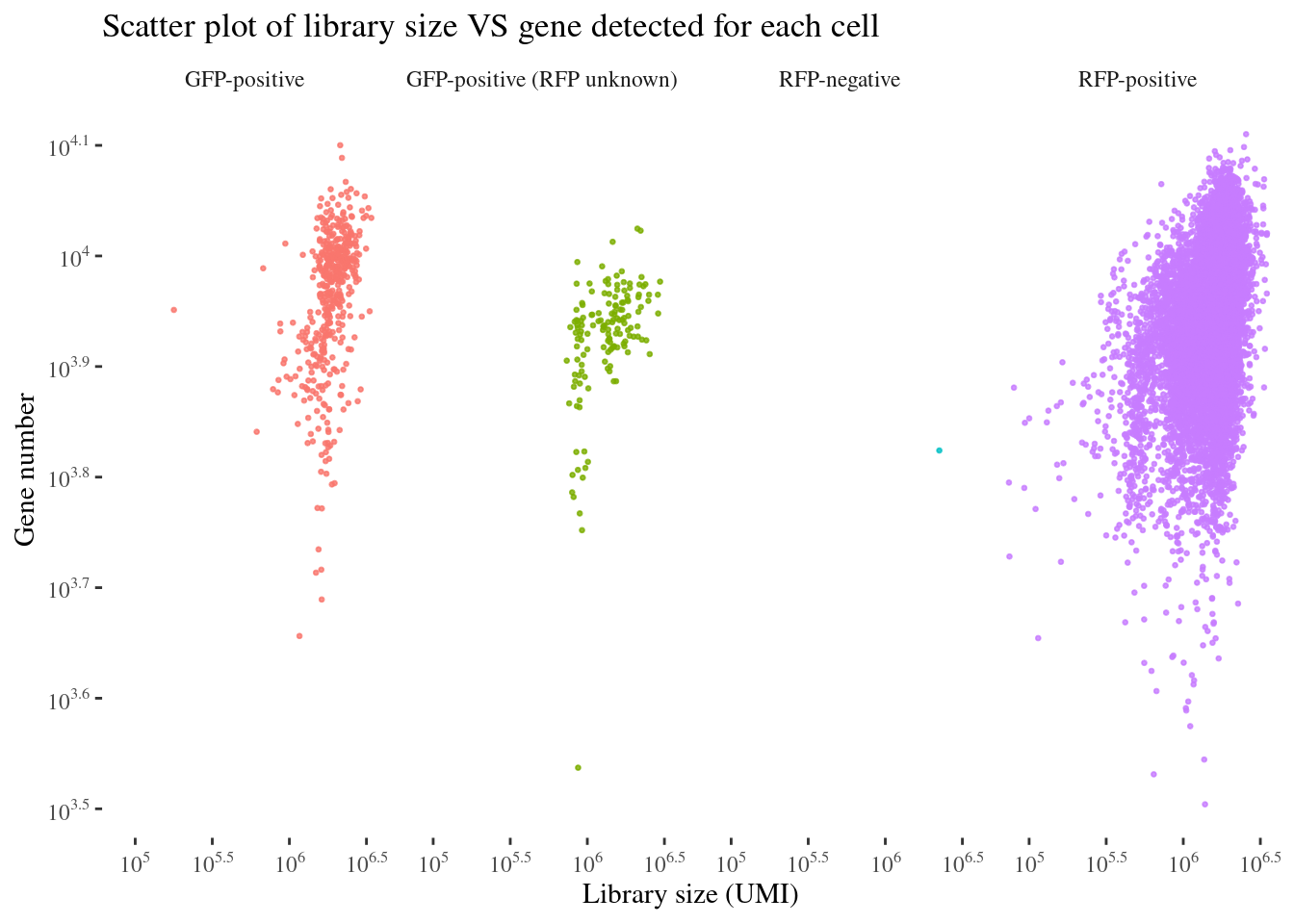

scatterPlot(CotanObj, condName = "facs_sort_criteria")

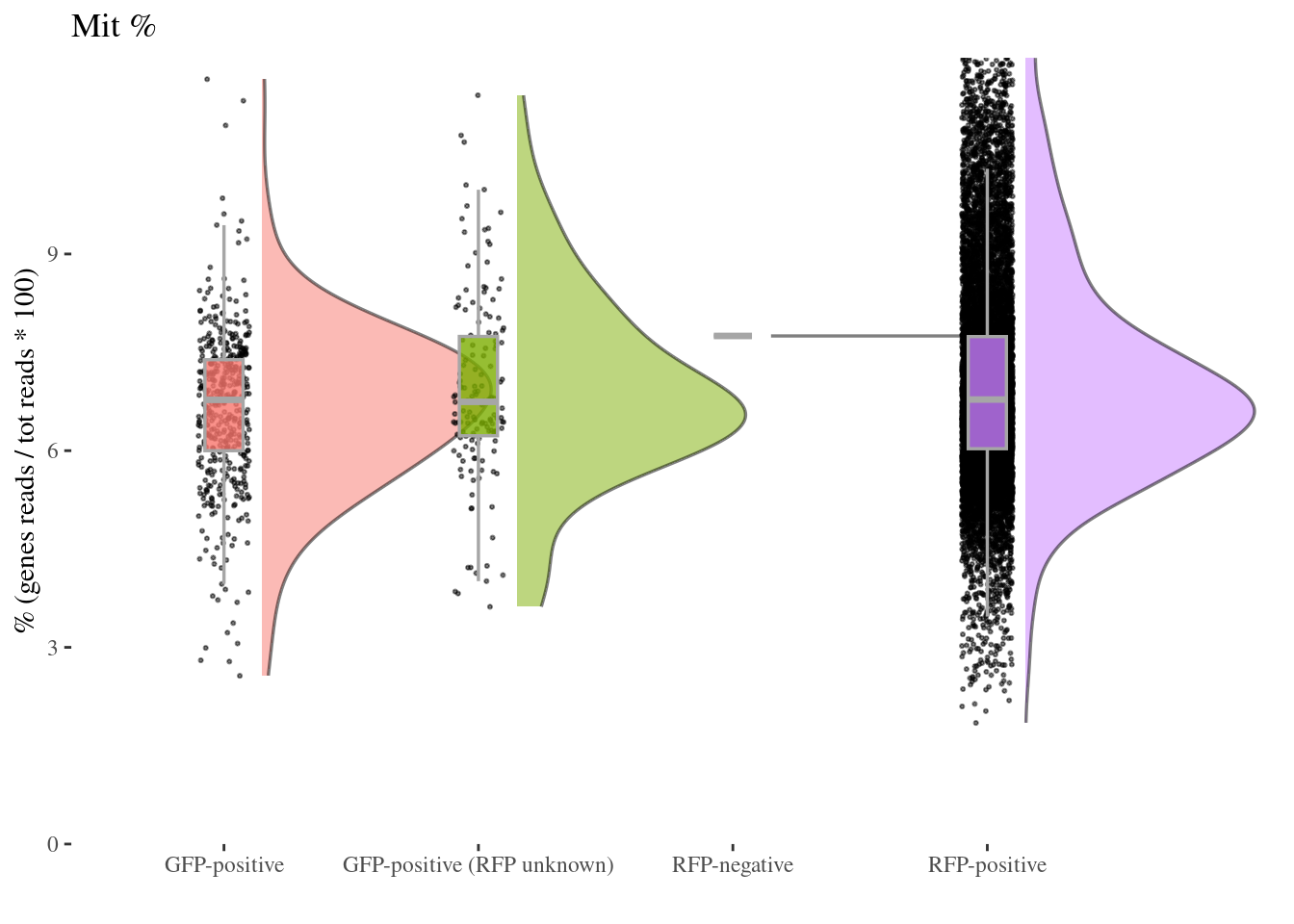

c(mitPerPlot, mitPerDf) %<-%
genesPercentagePlot(CotanObj, condName = "facs_sort_criteria",title = "Mit %",
genes = mitGenes)

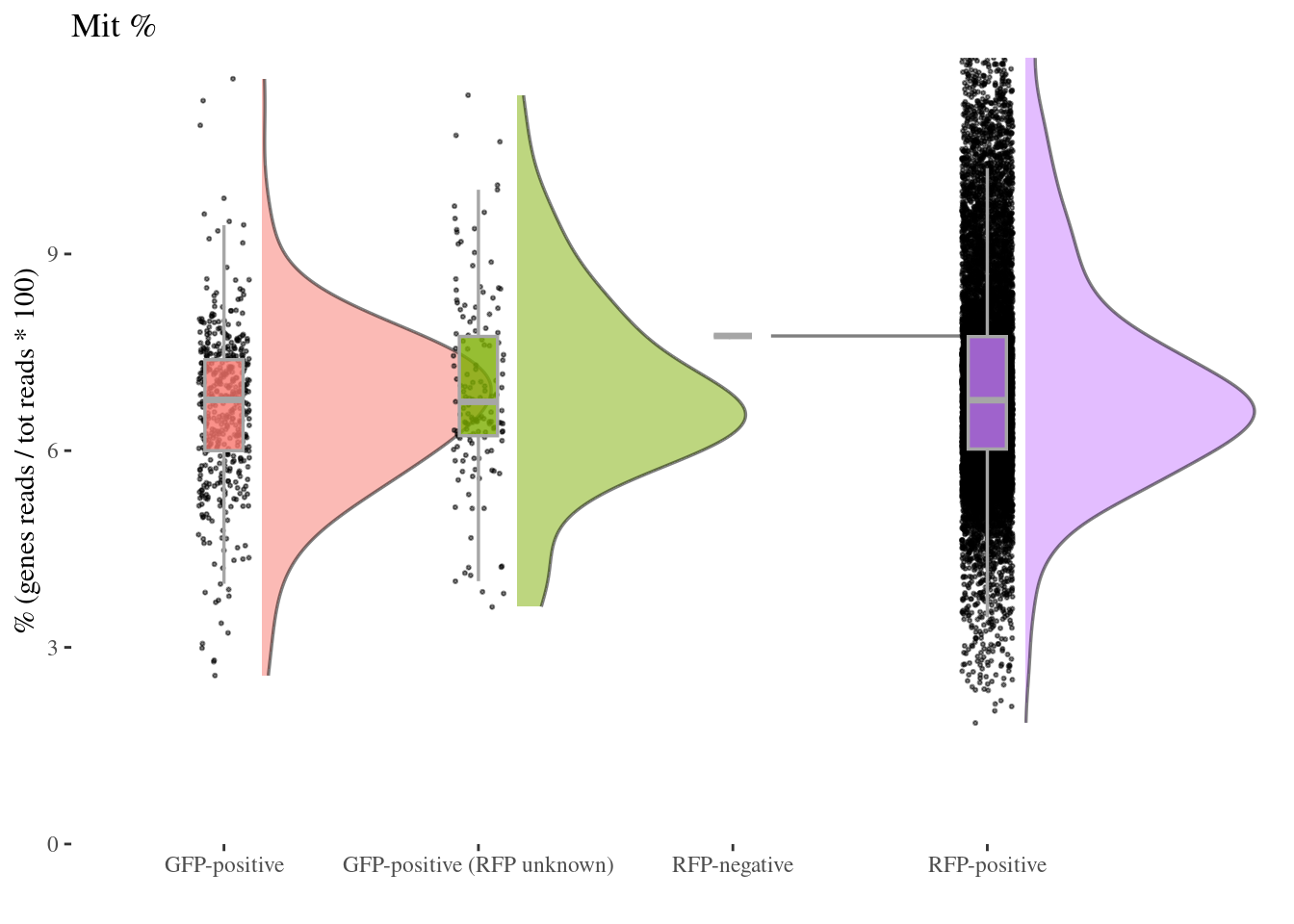

mitPerPlot
Remove cells with too high size
librarySize <- getCellsSize(CotanObj)
sum(librarySize > 4000000)[1] 32sum(librarySize > 3500000)[1] 45sum(librarySize > 3000000)[1] 76# drop above 11%
cellSizeThr <- 3500000
CotanObj <-
addElementToMetaDataset(
CotanObj,
"Cell size threshold", cellSizeThr)
cellsToDrop <- getCells(CotanObj)[which(librarySize > cellSizeThr)]
CotanObj <- dropGenesCells(CotanObj, cells = cellsToDrop)Redo the plots

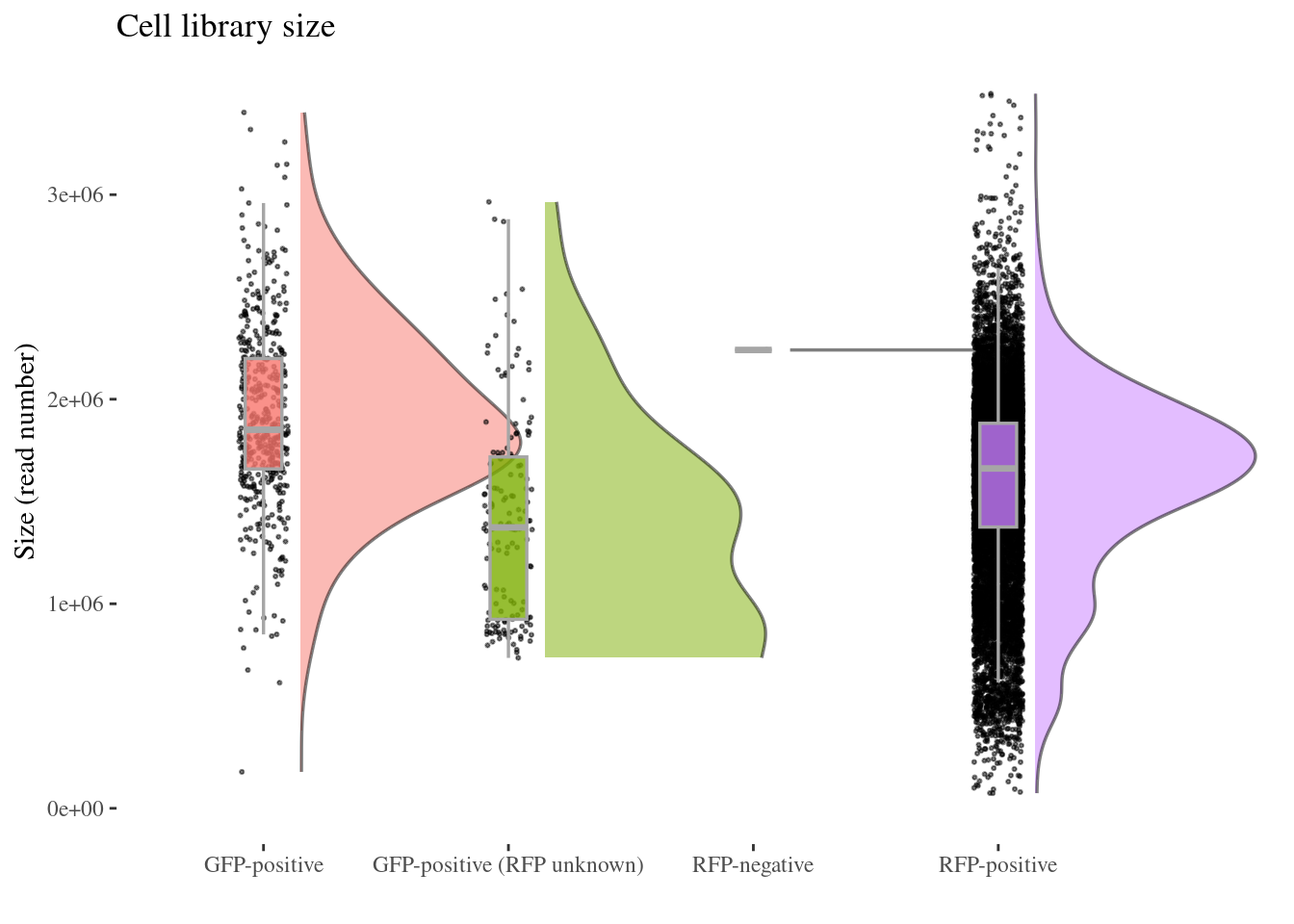

cellSizePlot(CotanObj, condName = "facs_sort_criteria")
genesSizePlot(CotanObj, condName = "facs_sort_criteria")
scatterPlot(CotanObj, condName = "facs_sort_criteria")
c(mitPerPlot, mitPerDf) %<-%
genesPercentagePlot(CotanObj, condName = "facs_sort_criteria",title = "Mit %",
genes = mitGenes)
mitPerPlot
Check for spurious clusters
CotanObj <- clean(CotanObj)
c(pcaCells, pcaCellsData, genes, UDE, nu, zoomedNu) %<-%
cleanPlots(CotanObj, includePCA = TRUE)Plot PCA and Nu

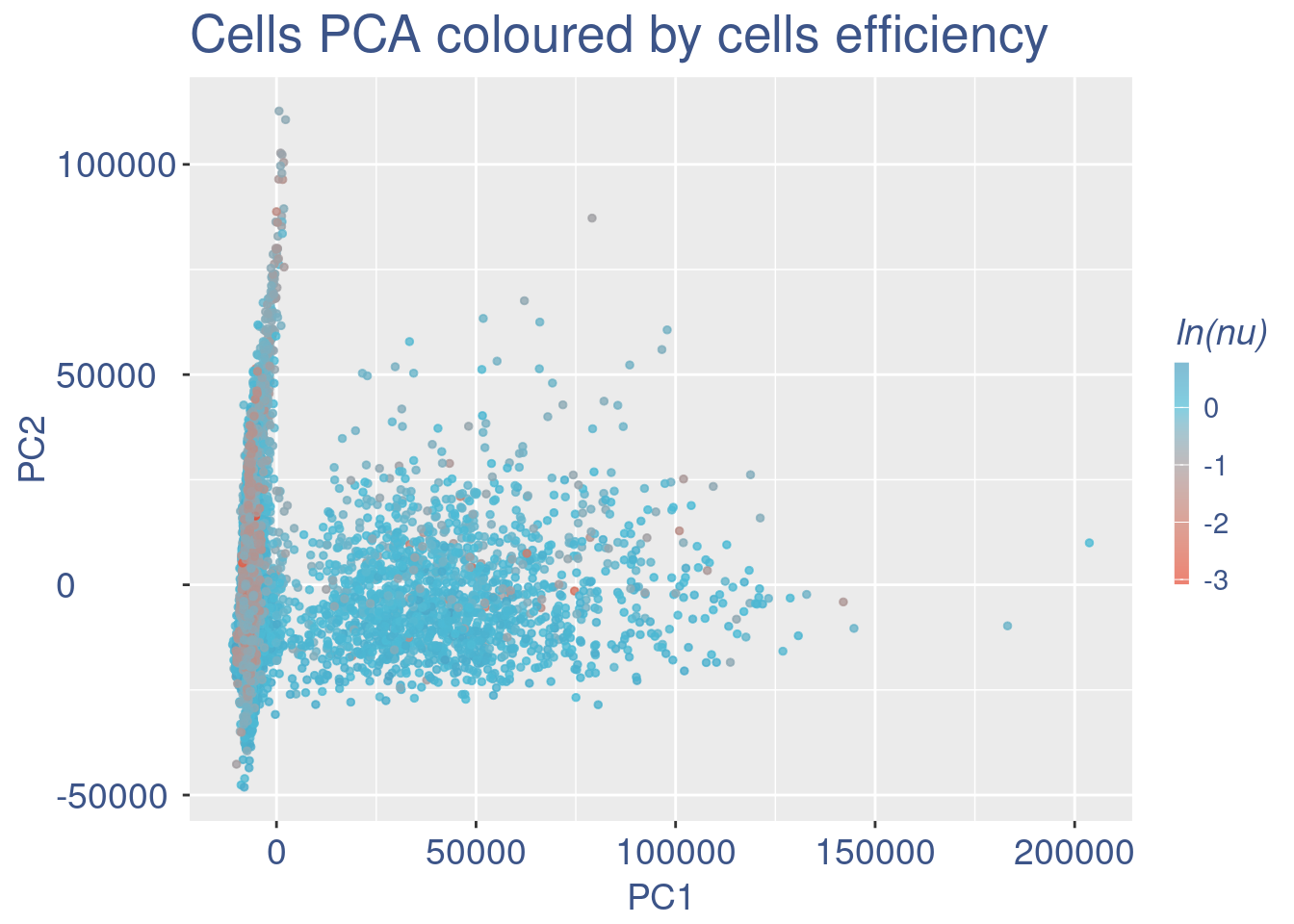

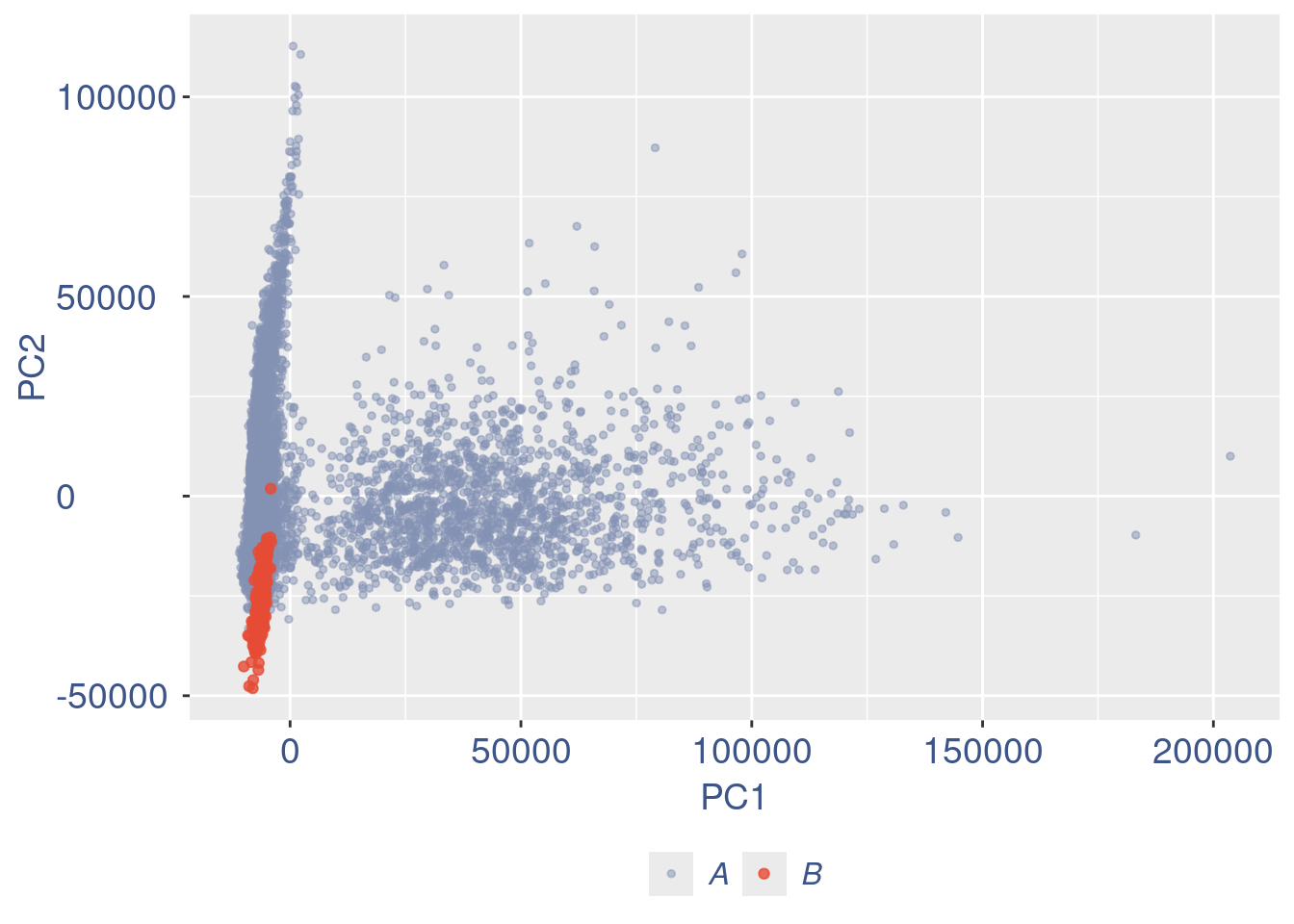

plot(pcaCells)
plot(UDE)

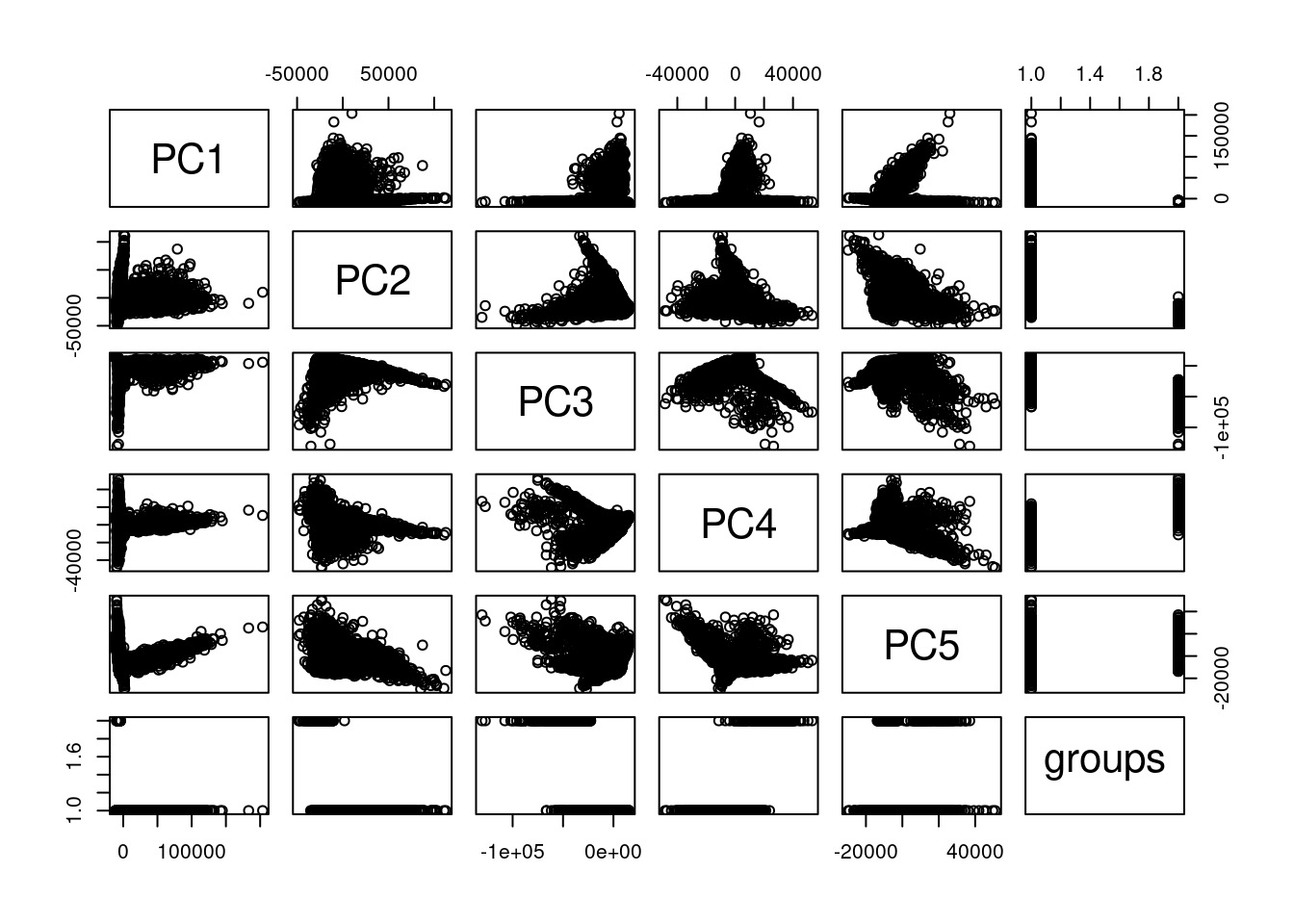

plot(pcaCellsData)
plot(genes)

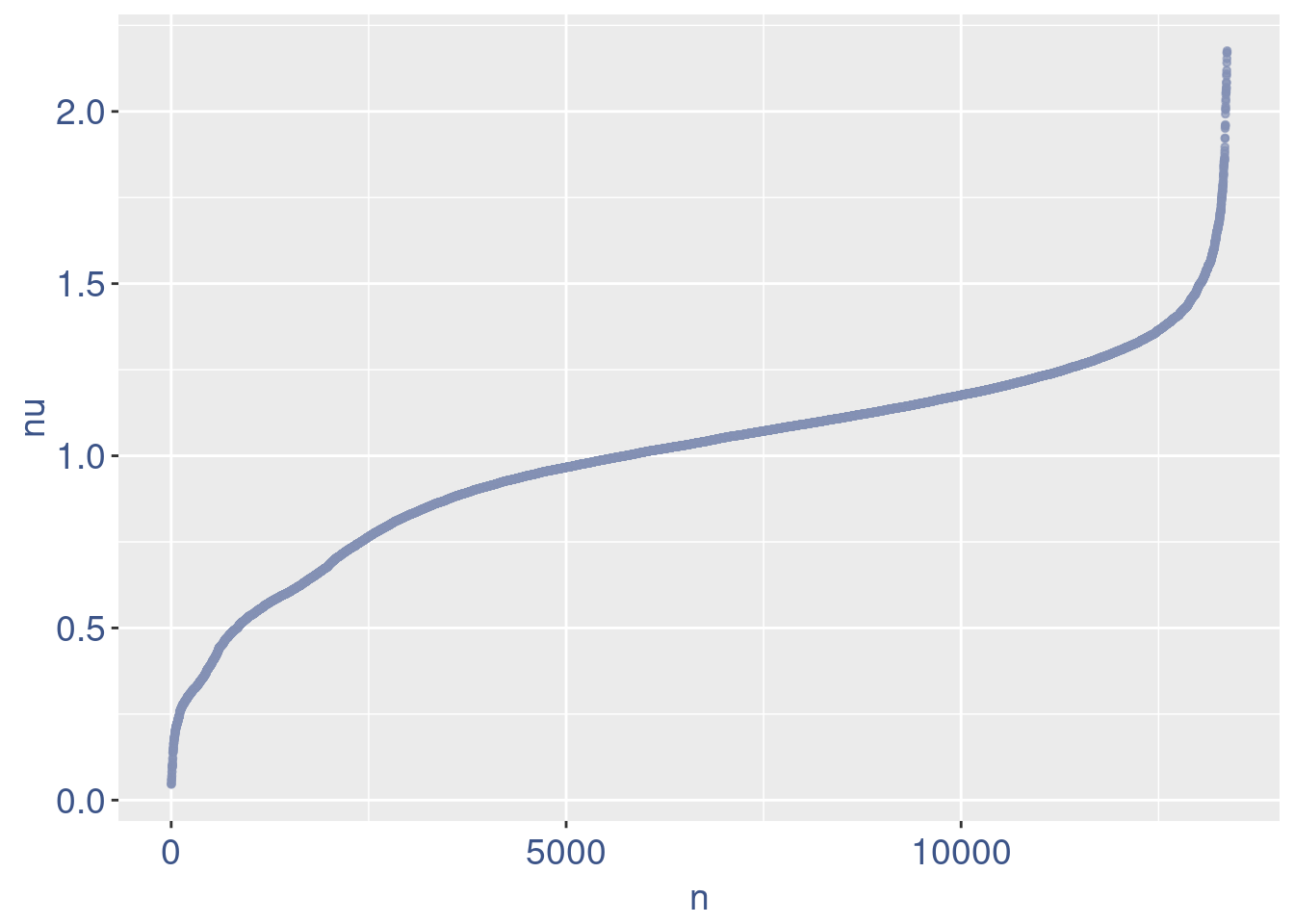

plot(nu)
plot(zoomedNu)

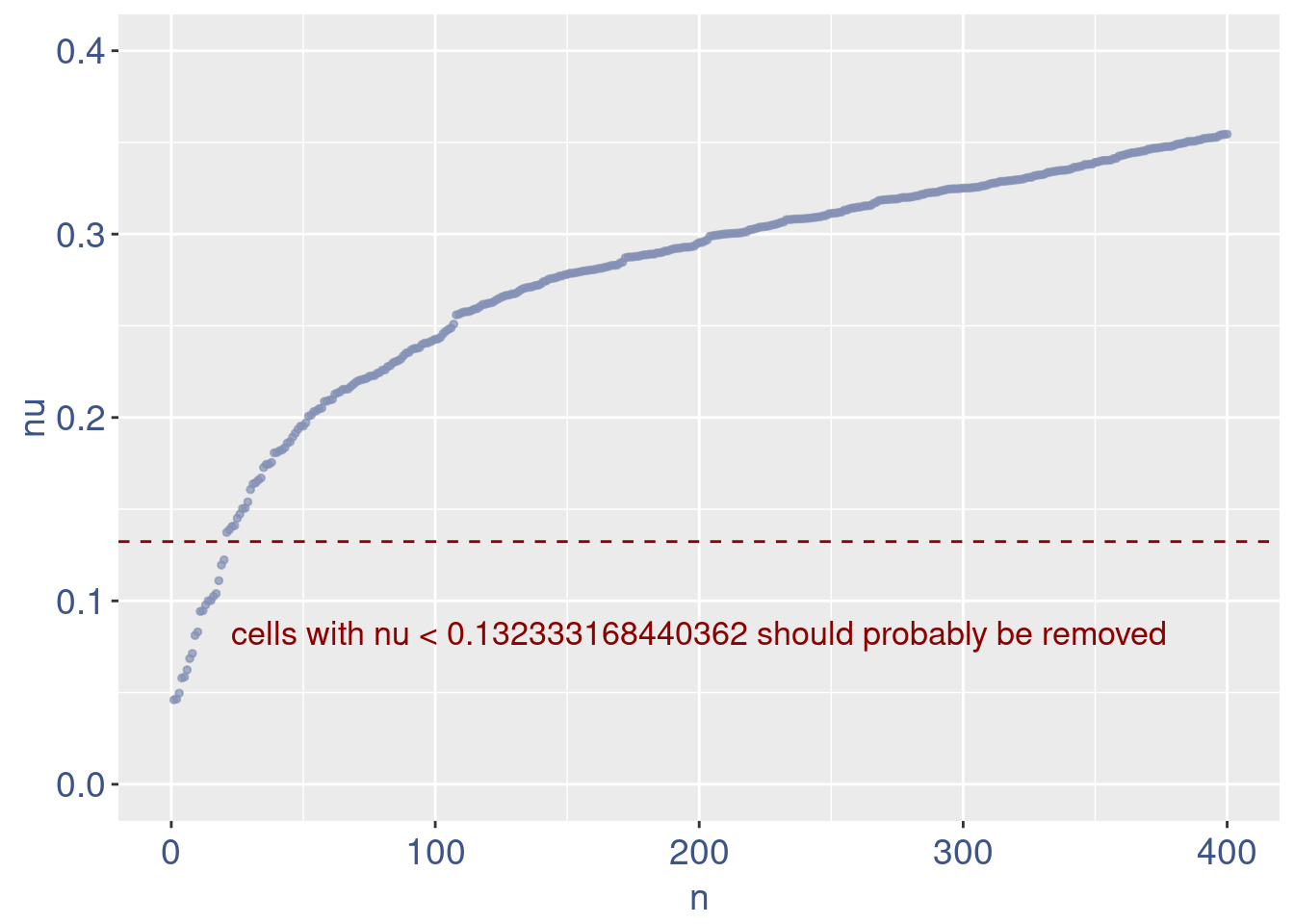

Remove cells below nu elbow point
nu <- getNu(CotanObj)
sum(nu < 0.1)[1] 13sum(nu < 0.11)[1] 17sum(nu < 0.12)[1] 19sum(nu < 0.13)[1] 20# drop above 11%
lowNuThr <- 0.13
CotanObj <-
addElementToMetaDataset(
CotanObj,
"Low Nu threshold", lowNuThr)
cellsToDrop <- getCells(CotanObj)[which(nu < lowNuThr)]
#cells_to_rem <- rownames(pcaCellsData)[pcaCellsData[["groups"]] == "B"]
CotanObj <- dropGenesCells(CotanObj, cells = cellsToDrop)Redo all the plots
CotanObj <- clean(CotanObj)
c(pcaCells, pcaCellsData, genes, UDE, nu, zoomedNu) %<-%

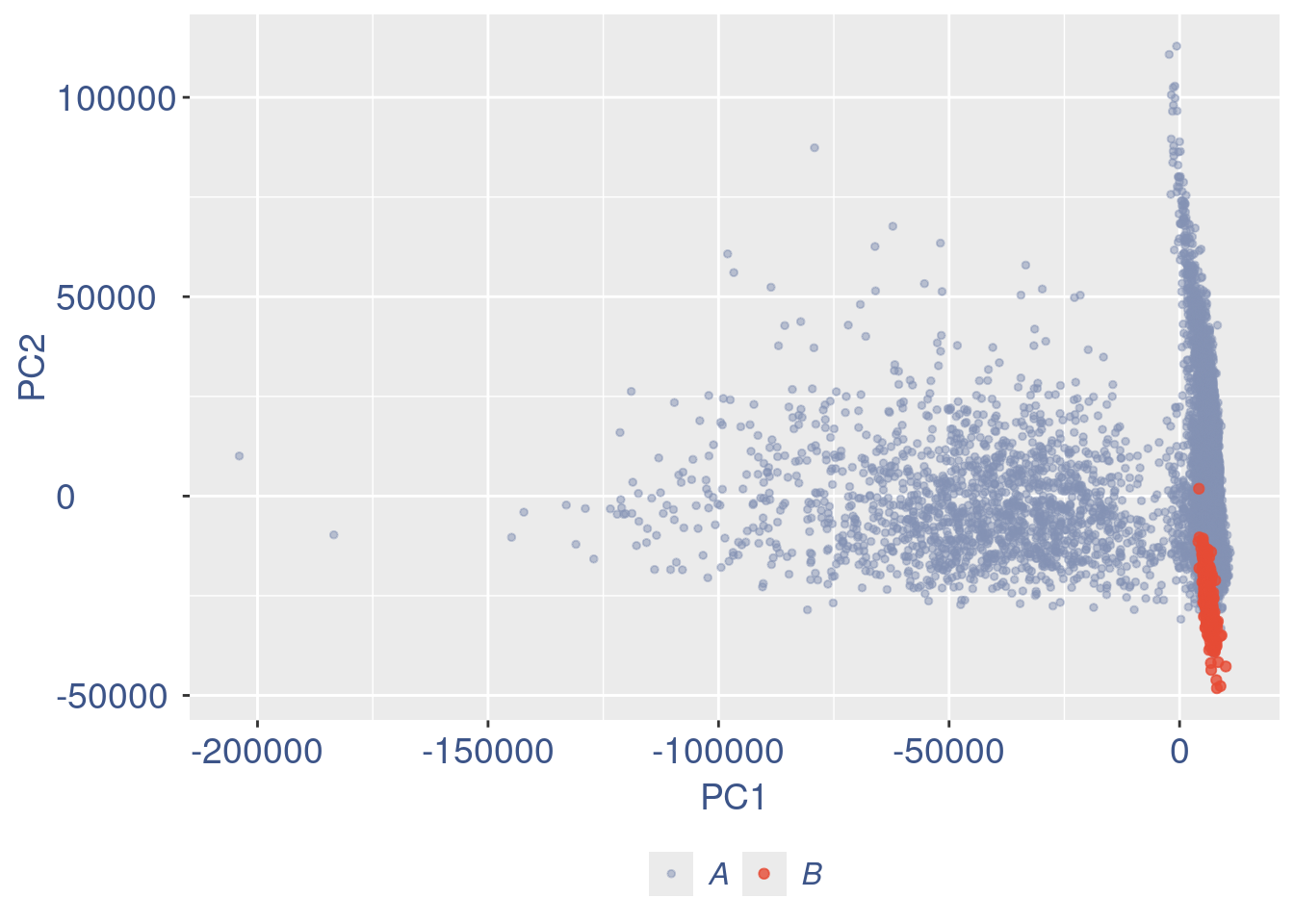

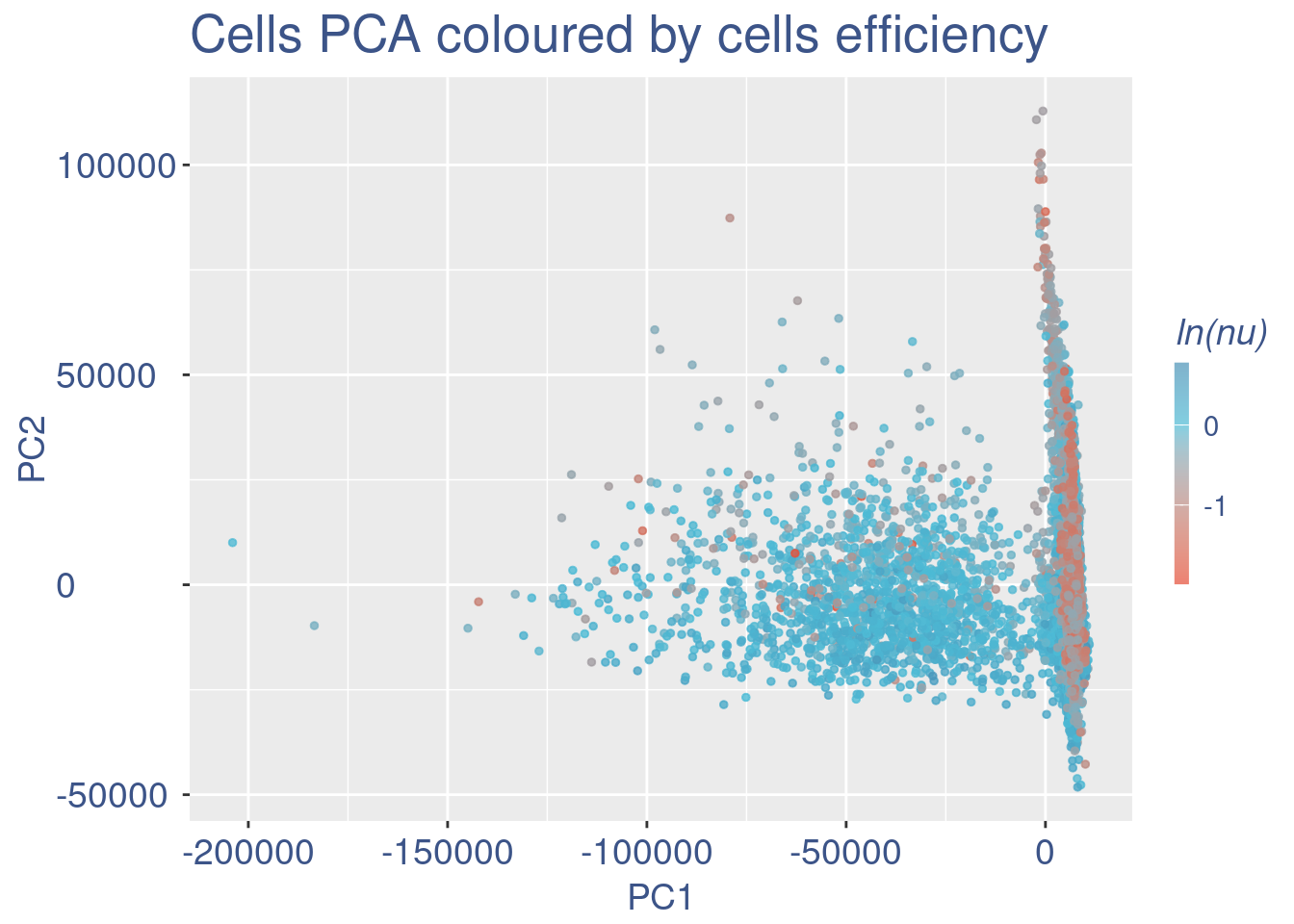

cleanPlots(CotanObj, includePCA = TRUE)plot(pcaCells)
plot(UDE)
#plot(pcaCellsData)

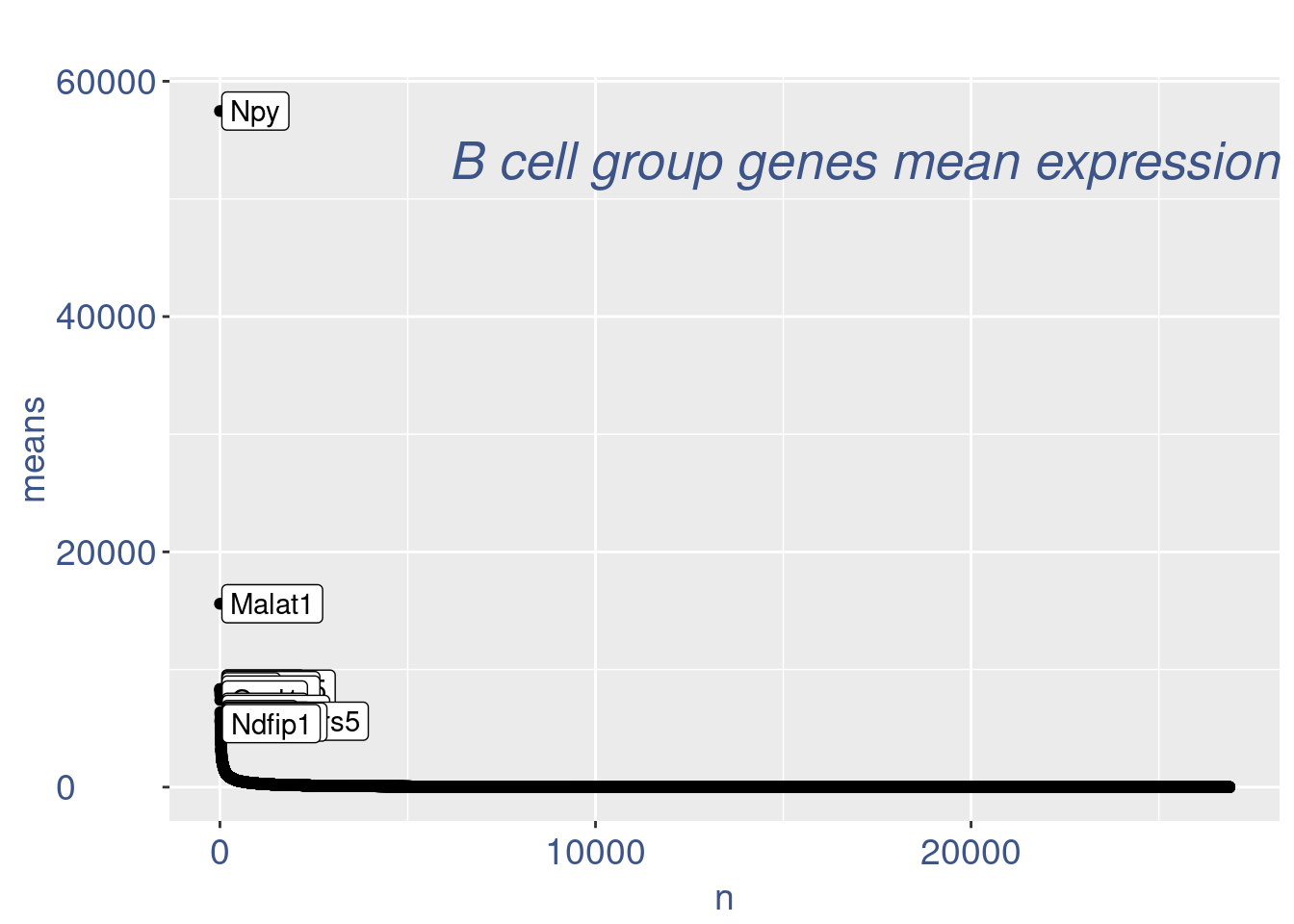

plot(genes)

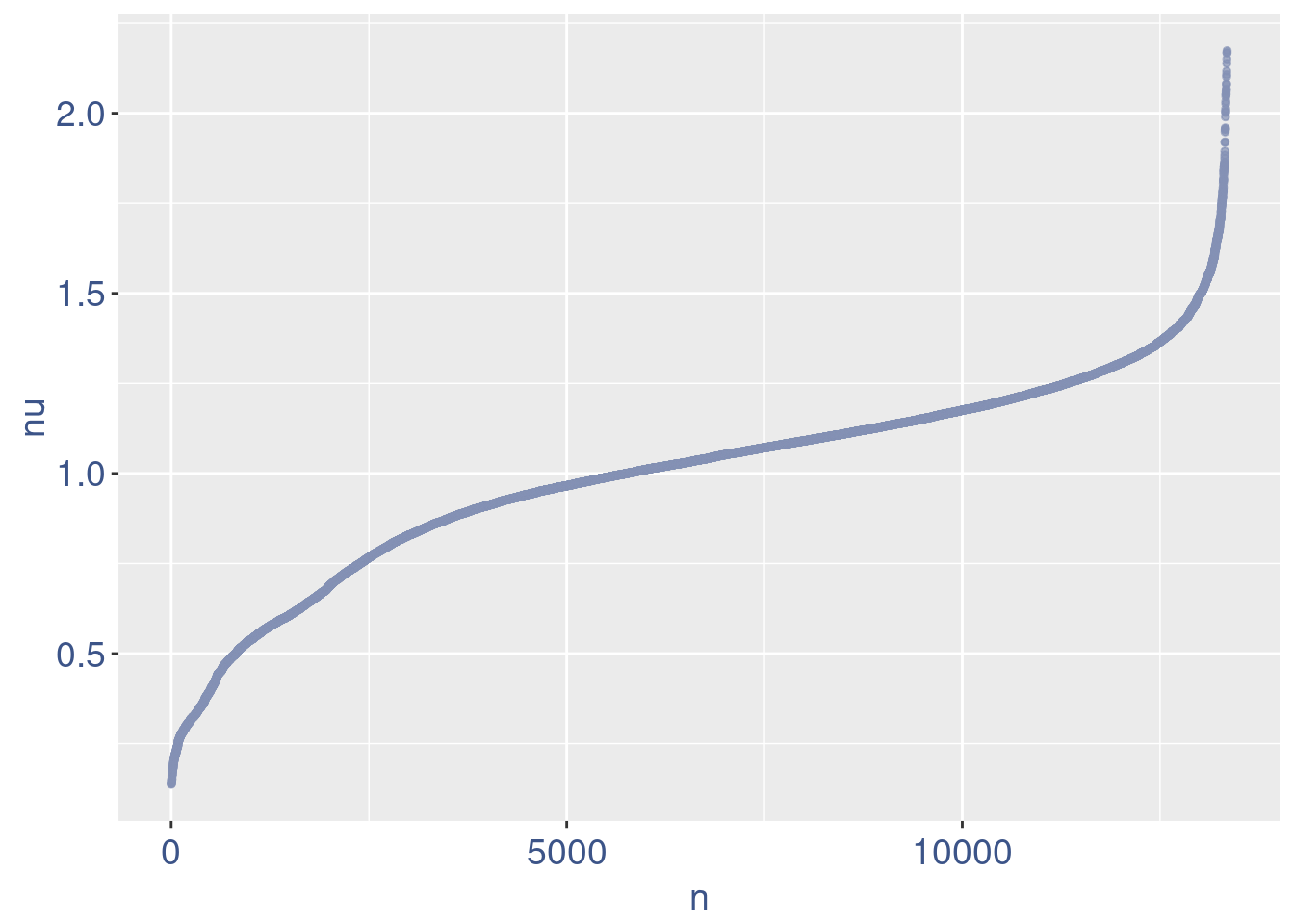

plot(nu)

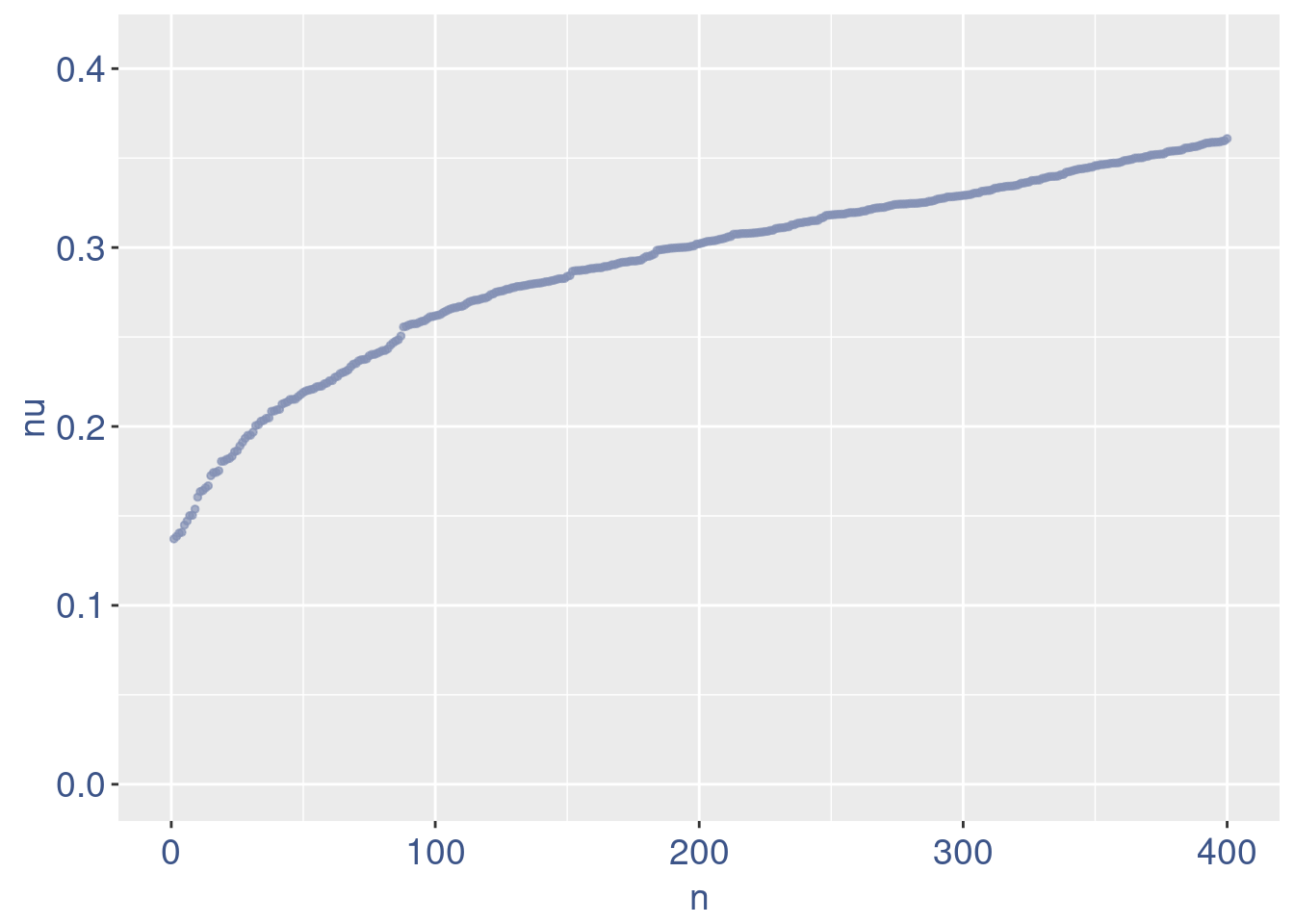

plot(zoomedNu)
# cellSizePlot(CotanObj,conditions = getClusterizationData(CotanObj,clName = "c1")[[1]])
# genesSizePlot(CotanObj,conditions = getClusterizationData(CotanObj,clName = "c1")[[1]])
# scatterPlot(CotanObj,conditions = getClusterizationData(CotanObj,clName = "c1")[[1]])
# cellSizePlot(CotanObj,conditions = getClusterizationData(CotanObj,clName = "c2")[[1]])
# genesSizePlot(CotanObj,conditions = getClusterizationData(CotanObj,clName = "c2")[[1]])
# scatterPlot(CotanObj,conditions = getClusterizationData(CotanObj,clName = "c2")[[1]])
# c(mitPerPlotc1, mitPerDfc1) %<-%
# mitochondrialPercentagePlot(CotanObj, conditions = getClusterizationData(CotanObj,clName = "c1")[[1]],
# genePrefix = "^MT-")
# c(mitPerPlotc2, mitPerDfc2) %<-%
# mitochondrialPercentagePlot(CotanObj, conditions = getClusterizationData(CotanObj,clName = "c2")[[1]],
# genePrefix = "^MT-")
# mitPerPlotc1
# mitPerPlotc2Finalize object and save
CotanObj <- proceedToCoex(CotanObj, calcCoex = FALSE, cores = 5L, saveObj = FALSE)fileNameOut <- paste0(globalCondition, "COTAN-Cleaned", ".RDS")
saveRDS(CotanObj, file = file.path(inDir, fileNameOut))Sys.time()[1] "2026-01-09 18:01:34 CET"sessionInfo()R version 4.5.2 (2025-10-31)
